Bally Leather Flexing Tester HTX-023-Manufacturer-HUST TONY

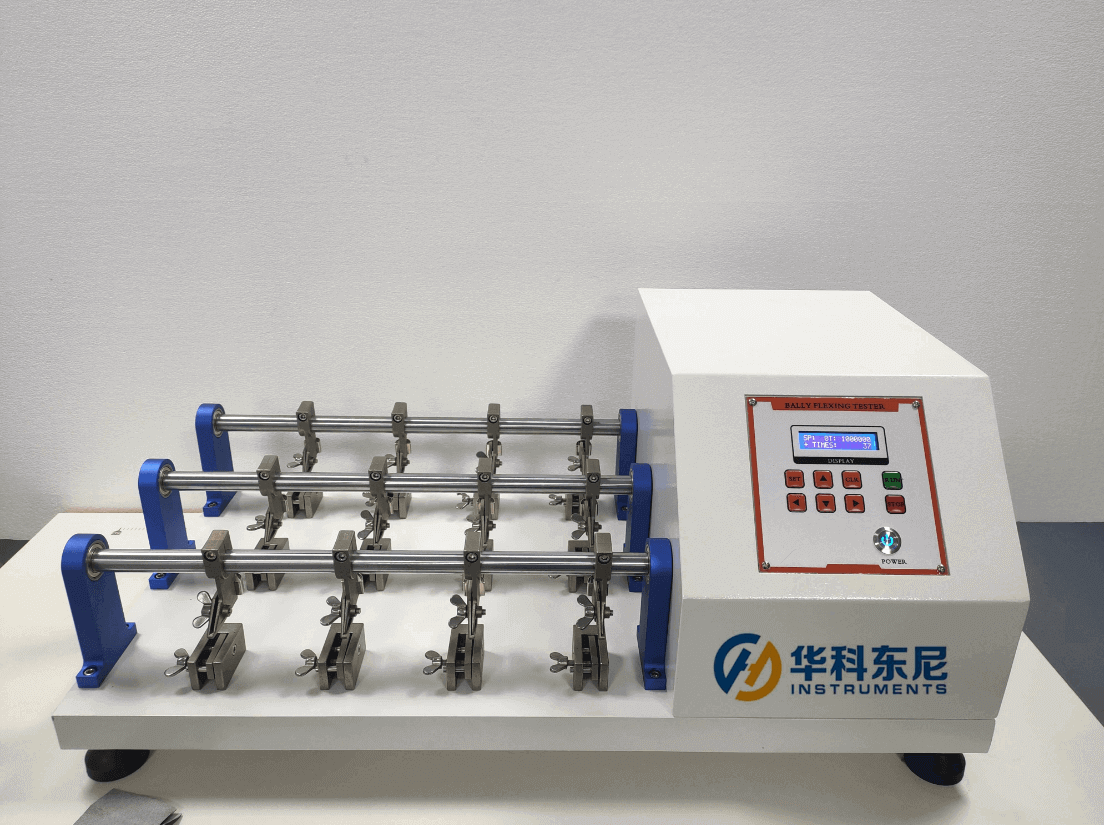

Bally Leather Flexing Tester HTX-023

Bally Leather Flexing Tester HTX-023-Manufacturer.This Bally resistance flexing tester is used to determine the resistance of a material to cracking or other types of failure at flexing creases.

The method is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.

Technical Specifications

Model	HTX-023-6	HTX-023-12	HTX-023-24
Test Position	6 Sets	12 Sets	24 Sets
Flexing Angle	22.5° ± 0.5°
Flexing Speed	100 ± 5 cycles / flexes per minute
Counter	0 – 999,99.(adjustable)
Sample Size	70 ± 5 x 45 ± 5 mm
Power Supply	1∮AC 220V 50/60HZ
Dimensions ( L x W x H )	700x300x340mm	850×465×360mm	1100x510x220mm
Net Weight	45Kg	60Kg	70Kg

Features

1.This leather flexometer’s design and manufacturing strictly follow variousinternational standards.

2.The outer box of the machine is formed from hard steel plates. The surface istreated with electrostatic spraying and anti-corrosion, and the structure is solid anddurable.

3.The clamps are made of stainless steel, and the specimens are easy to be mountedinto the machine with the help of the butterfly nuts.

4.This leather testing machine is an LCD with an English interface, sensitive buttons.a convenient and humanized control system, and a durable and precision motor.

5.This leather testing machine is an LCD with an English interface, sensitive buttons.a convenient and humanized control system, and a durable and precision motor.

6.The control system has functions of memory and automatic stop. After you stopthe flexing test from checking the change of the sample, you can click start toresume the test. lf you set the number of flex to 20,000, you do not need to standguard over the machine. When 20,000 times are reached, the machine willautomatically stop. lt allows you to handle other things in the test.

7.We offer models of 6-station, 12-station and 24-station for you to choose from. Theroutine is 12 stations. The advantage of the 24-station machine is that you don’tneed to purchase two machines if you want to test 24 samples simultaneously. lt isefficient and cost-saving.
