Box Compression Tester TNT-05
Box Compression Tester uses a motor drive screw to move the pressure plate downwards, thus pressing the test sample; The pressure display automatically displays the strength value. Test the pressure strength of cartons or other packaging containers.
Standard :
GB/T 4857.4-92 , Packaging ,Transport package ,pressure test method
GB/T 4857.3-92 , Packaging, Transport package , static load heap code test method
also applied to standards of GB,ISO,ASTM,BS,DIN,JIS or other international
Technical Specifications
Model | TNT-05 |
Transmission Mode | Screw drive |
Capacity | 1000kg,2000KG,5000kg Customization is acceptable |
Load Accuracy | ±0.5(±1%) |
Units | N、kN、kgf、gf、lbf |
Control System | AC variable frequency gear motor |
Kind of Drive | T-screw + chain drive |
Display | Chinese or English LCD big screen |
Stroke | 1000mm (can be specified) |
Test Speed | 12-150mm/min |
Test Space | 1000 mm × 1000 mm × 1200mm Customization is acceptable |
Pressure Holding Function | Fully automatic pressure holding, time can be set. |
Surface Treatment of Testing Machine | Painted , the column is made of aluminum profile |
Instrument Weight | 850KG |
Protector | Leakage protection / overload automatic shutdown protection / stroke limit protection |
Function | Automatic report printing, (Chinese) printing (maximum force, average, free point value, breakpoint scale, date) |
Three Basic Test Functions
Pressure Test:
For determining the ultimate compressive strength of the specimen, the testing machine automatically records the peak pressure and the compressive deformation of the specimen.
Constant Value Test:
The overall performance of the box can be detected according to the set pressure or deformation amount, and the design and selection of the box is provided Necessary test data;
Stacking Strength Test:
A certain pressure value is continuously applied to the specimen for a specified period of time, which is used to determine the storage conditions of the specimen in the simulated packaging .
According to the relevant standards, the pressure durability can be stacked for 12 hours, 24 hours and other different conditions.
Note: According to different sizes of corrugated boxes, packaging containers, transport packaging, you can choose from the following to combine into testing machines of different sizes and different pressure ranges to meet your needs.
Product Features
1.Using high-precision load cell, the accuracy is controlled at <0.1% when leaving the factory, which is far better than the ±1% of ISO standard;
2.The use of frequency conversion motor and precision screw auxiliary drive ensures the accuracy and reliability and stability of the displacement of the equipment up and down;
3.Automatic completion of the test, the equipment has the functions of test data display, memory storage, analysis, statistical processing and printing of test reports, which is convenient to operate;
4.Preset test speed and return speed and free adjustment of the position of the upper pressure plate make the test faster and more efficient;

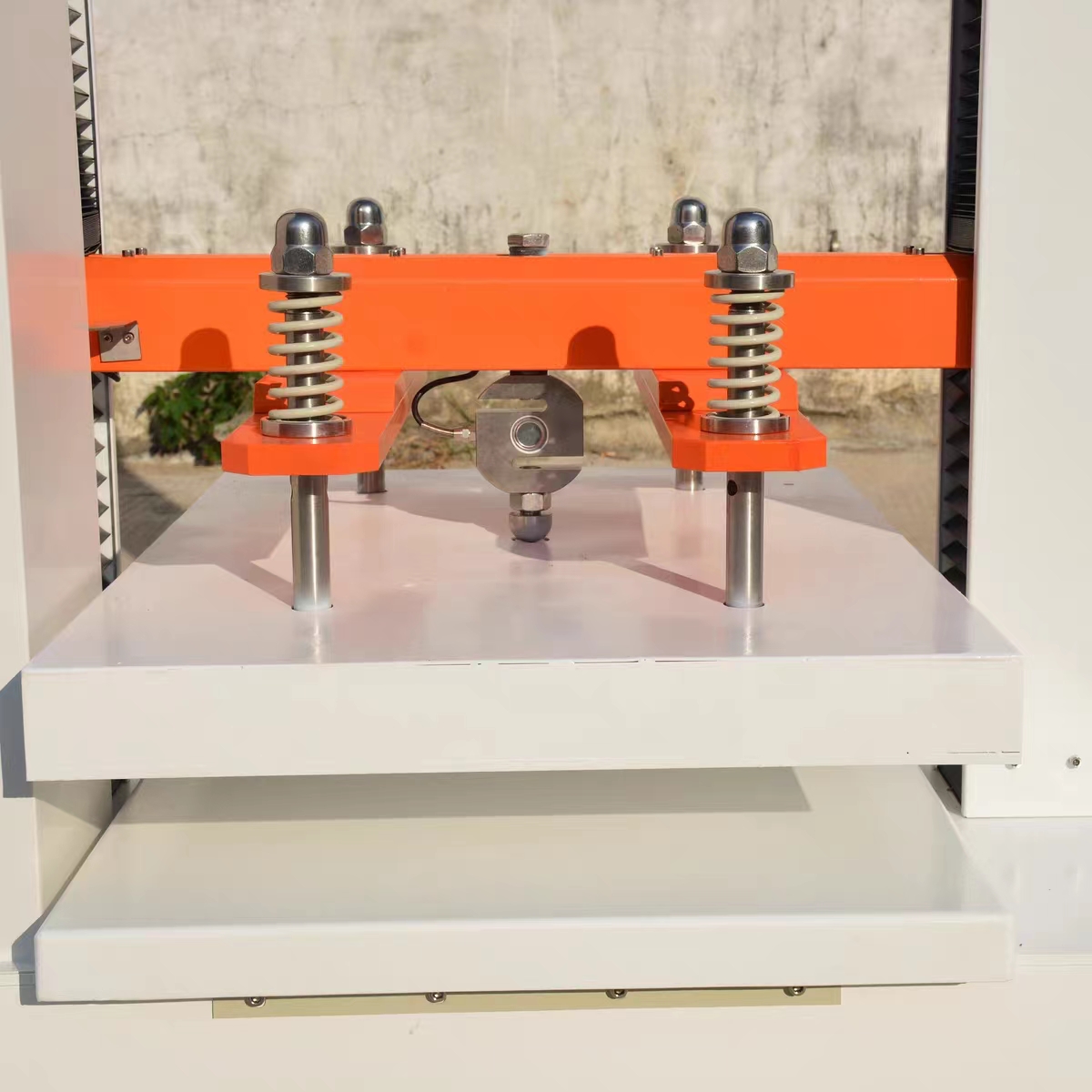

5.The load cell is located above and connected to the upper pressure plate, and the user or the measurement and calibration department (third party) can easily calibrate the indicator error of the instrument by placing the standard sensor in the middle of the upper and lower pressure plates for calibration operation.


Safety Precautions
1.Measurement and control software pressure value overload protection system.
2.Upper and lower stroke limit switch protection device.
3.Power-off automatic locking transmission protection.
4.The sensor pressure value is automatically reset to zero.
5.Preset test speed and return speed for faster testing
6.The display function test completes and automatically returns to the initial position.
Standards
ISO2872 《Pressure test of packaging and shipping parts》
ISO2874 《Stacking test by pressure testing machine for packaging and shipping parts》
GB4857.4 《Basic pressure test method for transport packaging》
