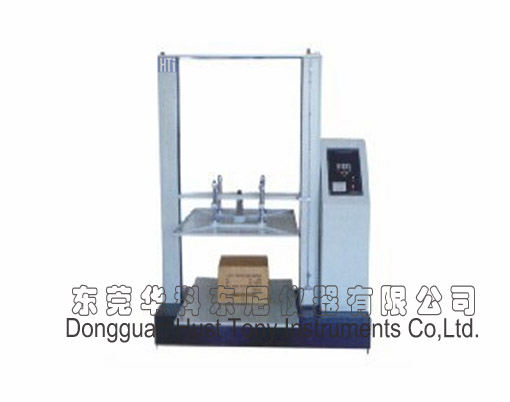

Carton Resist Compression Tester For GB/T 4857 — TNT-06

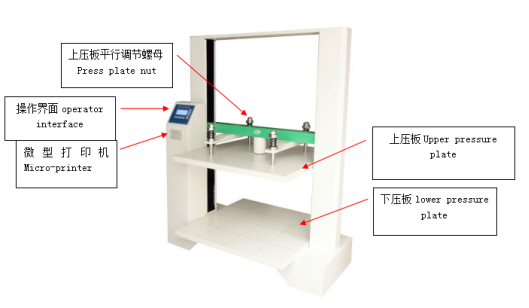

Carton Resist Compression Tester uses a motor drive screw to move the pressure plate downwards, thus pressing the test sample; The pressure display automatically displays the strength value. Test the pressure strength of cartons or other packaging containers.
Standard :
GB/T 4857.4-92 , Packaging ,Transport package ,pressure test method
GB/T 4857.3-92 , Packaging, Transport package , static load heap code test method
also applied to standards of GB,ISO,ASTM,BS,DIN,JIS or other international
Technical specifications
measurement range | ≤2000 kg |
units | N、kN、kgf、gf、lbf |
units | Pa、kPa、MPa、kgf/cm2、lbf/in2 |
resolution | 1 N |
accuracy of the display | ±1 % |
Test speed | 10±3 mm/min |
Return speed | 200.0 mm/min |
size of the pressure plate | 1200*1200 mm |
Up and down pressure plate spacing | 800 mm |
- Room temperature: 20C±10C
- Power supply: AC220V±22V, 50HZ, maxi current 1A, power supply should be reliably grounded.
- The working environment keep clean, there is no strong magnetic field and vibration source, and keep the workbench flat and stable.
- Relative humidity:< 85%
- Weight: approx 1000 kg
- size : 1860*1000*2030mm
Standards
Carton Resist Compression Tester
GB/T 4857.4-92 , Packaging ,Transport package ,pressure test method
GB/T 4857.3-92 , Packaging, Transport package , static load heap code test method
also applied to standards of GB,ISO,ASTM,BS,DIN,JIS or other international standard.
