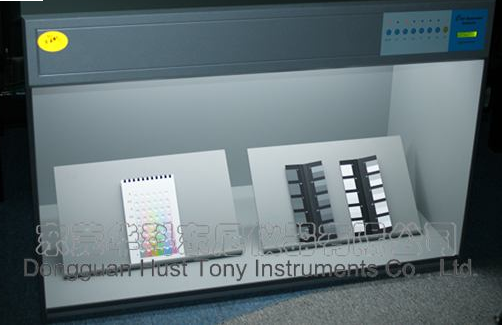

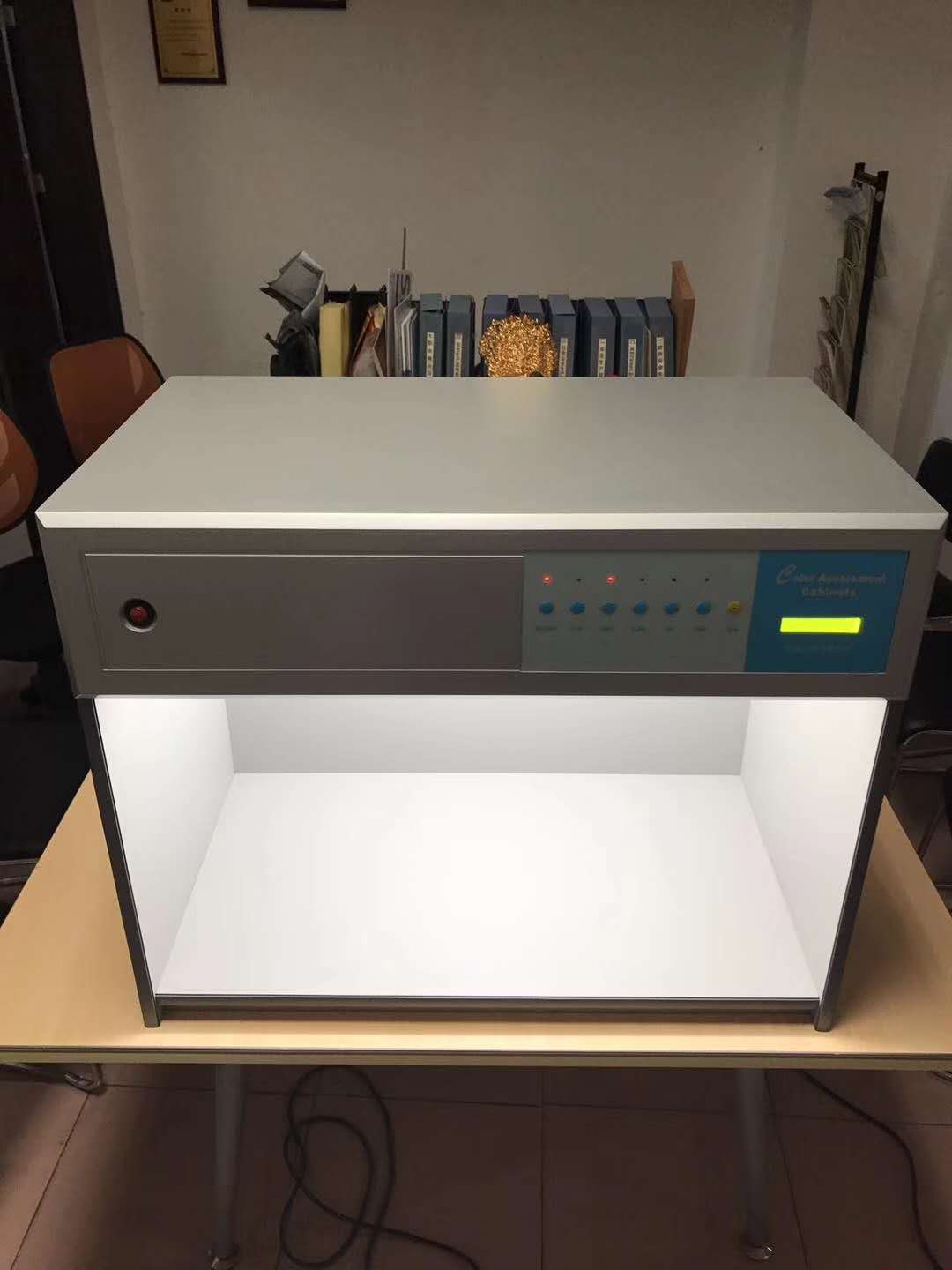

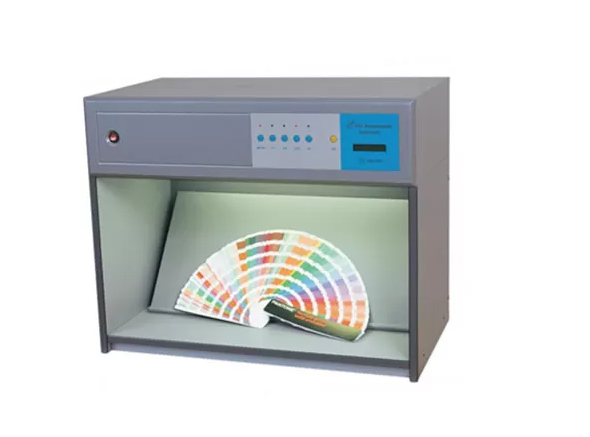

Color Assessment Cabinet HTL-001-Direct Manufacturer

Color Matching Light Box Tester Color Matching Light Box Tester
Lab Color Matching Light Box Tester Textile Color Assessment Cabinet Lab Color Matching Light Box Tester Textile Color Assessment Cabinet
Lab Color Matching Light Box Tester Textile Color Assessment Cabinet Lab Color Matching Light Box Tester Textile Color Assessment Cabinet

Product Introduction

Color assessment cabinet / Color Light Box /Color matching cabinet can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.







Technical Parameters

Light Source

Color Viewing Booths Application

Color Temperature(K)

Power(w)

D65

International Standards Artificial Daylight

6500

18

TL84

Applied to stores in Europe, Japan and china

4000

18

CWF

(Coll White Fluorescent) American standard

4200

18

F/A

“Sun-Setting Light Yellow” incandescent light source (imitation of sunset)

2700

40

UV

Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments

Wavelength: 365nm

18

U30

Warm White fluorescent, American Standard

3000

18

Models

Configured Light Sources

Weight

Dimensions( Lx W x H)

HTL-001(4)

D65.TL84. F/A.UV

24kg

710 x 405 x 570mm

HTL-002(5)

D65.TL84.CWF.F/A.UV

28kg

710 x 405 x 570mm

HTL-003(6)

D65.TL84.CWF.F/A.UV.U30

34kg

710*540*625mm

HTL-004(7)

D65.TL84.CWF.F/A .UV. U30 INCA

34kg

710 x 530 x 570mm

HTL-005(12)

D65.TL84.CWF F/A.UV U30

65kg

1310 x 600 x 800mm

Standard accessories

1 Set

Tube

1 Pcs

Power line

Optional accessories

Optional

45°Standard grandstand

Model

HTL-001(4)

Configured Light Sources

D65.TL84. F/A.UV

Net Weight

24 kg

Gross Weight

43 kg

Package Dimension

800*620*5800mm(LW*H)

Features

1. Equipped ith 6 different light sources(D65, TL84, CWF, F/A, UV, U30), which can detect the metamerism.
2. Meets or exceeds major international standards for visual color evaluation
3. Easy to operate by using individual switches for each light source.
4. Elapsed time meter for tracking optimal lamp replacement.
5. Automatically alternating among light sources.
6. No warm-up time or flickering which insures quick and reliable color judgment.
7. Economic power consumption and low heat generation for high light efficiency.
8. The dimension can be made by customized.

Standards

ASTM D1729

ISO3664,

DIN, ANSI and BSI.
