Gas Fume Color Fastness Tester HTC-007B-Textile Test-Manufacturer-HUST TONY

 Colour Fastness Ergonomic Gas Fume Test Chamber  Colour Fastness Ergonomic Gas Fume Test Chamber
Textile Colour Fastness Ergonomic Gas Fume Test Chamber Textile Colour Fastness Ergonomic Gas Fume Test Chamber

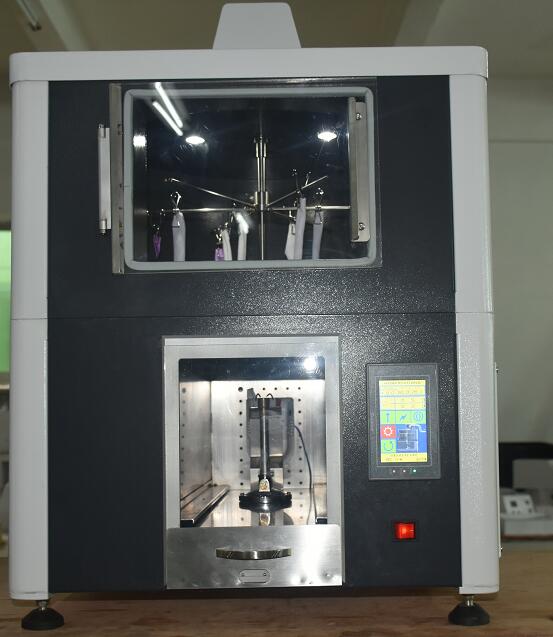

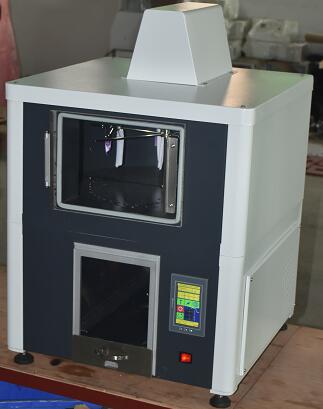

Gas Fume Color Fastness Tester HTC-007B

Gas Fume Color Fastness Tester is suitable for testing the color fastness of all textiles except loose fibers when exposed to burnt gas fume/ atmospheric nitrogen oxides produced by the combustion of chemically pure butane gas or city gas.

The textile sample and the control standard are placed in a fume-filled test box at the same time, until the color of the control standard changes to the color of the specified fade standard.


No discoloration of the fragments can be observed, and the test cycle can be continued for the specified number of times or the number of times required for the fragments to produce the specified discoloration.

Technical Specifications



Specimen Mounting Rod

6 pcs

Sample holder Rotation Speed

2-3 r/min

Test Temperature


Burning Gas

Chemically pure butane gas or Manufactured gas

Control Method

PLC and Touch Screen control

Test box

SUS material, inner diameter: 500mm

Machine Dimension


Net Weight

About 75Kg


AC220V 50/60Hz


  • Large-capacity rotating sample holder.
  • The burner can control the flame height, and the gas pressure regulating device.
  • The test box has built-in lights and observation windows.
  • There are multiple safety protection devices such as gas leak detectors, fire extinguishing alarms, etc. inside.
  • Easy-to-use touch screen controller, easy to control the test frame and test cycle of the test room.
  • The temperature controller can control the temperature in the test room below the maximum set.


AATCC 23, ISO 105-G02,  And GBT 11039
