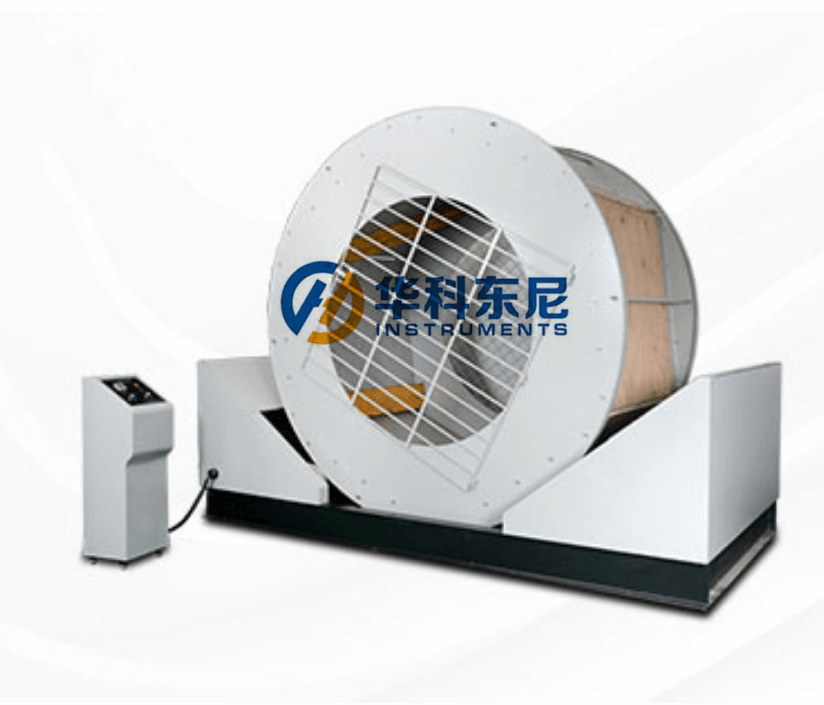

Luggage Tumble Test Machine HTD-015

Luggage Tumble Test Machine HTD-015-Luggage Tumble Test-Manufactuer

This machine imitates the damage test of suitcases and other packaging boxes during transportation, such as dropping, impact, and rolling, and tests the protection ability of suitcases and contents, as the basis for product improvement.

If you want to learn more about Luggage Tumble Test Machine HTD-015, Please click this link:Link 1,Link 2

Youtube video :Click here

Technical Specifications

Model	HTD-015
Roller Diameter	72 inch (182.88 cm )
Depth	48 inch
Roller speed	2rpm (Can be set )
Obstacles Specification	96 degrees obstacles 3 groups
Sample Size	1000×700×400mm
Metal rollers	The inner cavity is a regular hexahedral cylinder (the distance of the inner cavity seal Angle line is 2200MM, the depth of the cylinder is 1220MM)
Counter	LCD display, 0-99999999 can be set
Machine size *(LWH)*	230016002600
Net Weight	About 1500 kg
Power Supply	AC 220V

Test Principle

Test principle: In the fall process, the cargo bracket first moves rapidly down and then rotates, to ensure the free separation of the bracket and the packaging test piece, to achieve the free fall of the packaging test piece, and to truly complete the drop test bench of the surface, edge and Angle drop test.

Sampling requirements: Finished leather cases.

Results: After the completion of the specified number of revolutions, check the damage condition of the box as the basis for quality control.
