Luggage Vibration Impact Tester HTD-005-Made In China

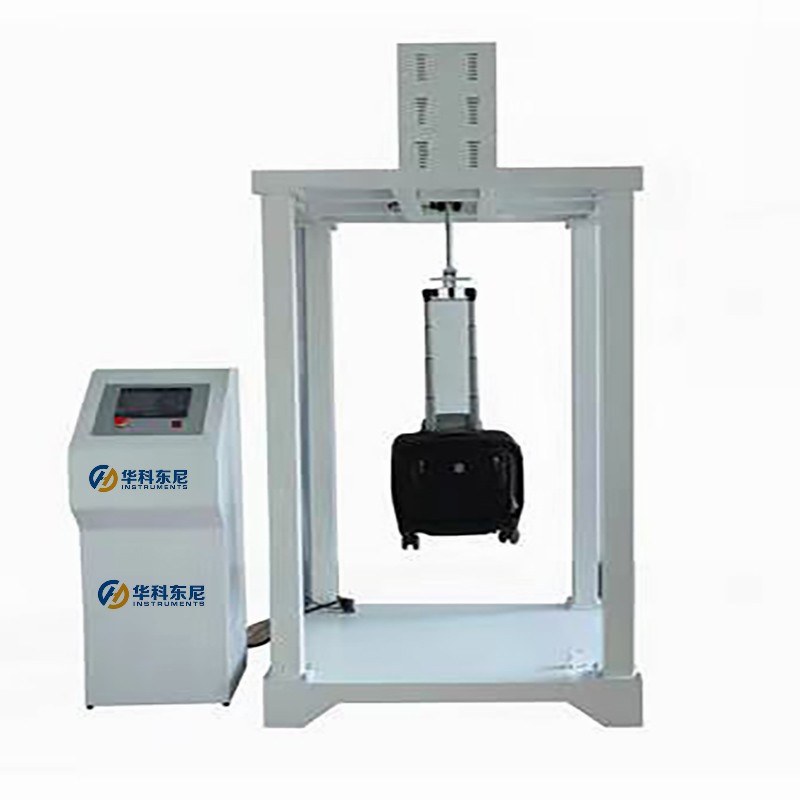

Luggage Vibration Impact Tester
Luggage Vibration Impact Tester.The purpose is to test the strength of the tie rod, handle and overall structure of the bag, load the bag, etc.
Then impact the test at a speed of 20 times per minute, and the test results can be used as a reference for product improvement.
Youtube video :Click here
Technical Specifications
Model | HTF-005 |
Impact Height | 6 Inches ( adjustable) |
Max. load | 100 kg |
Oscillation Mode | Spring mode 17.54N/mm (±5%) |
Testing Speed | 10-30 r/min (adjustable) |
Times Setting | 1~999999 Automatic shutdown |
Driving Mode | Pneumatic Cylinder |
Control System | PLC + touch screen (using man-machine interface control system, easy to operate, with power off, power saving function) |
Additional Function | It would stop automatically if something goes wrong. |
Gas Source | 6KG/CM2 (provided by buyer) |
Machine Dimension | 1400×1200×2500 mm |
Machine Weight | 390 Kg |
Power | 1∮, AC220V, 50Hz |
Features
1. When the set time is reached or the backpack strap is damaged, the suitcase vibration shock tester stops automatically.
2. The company develops a control system with timing and counting functions by itself. There are start, stop, pause, count and clear functions on the test control panel.
3. Fast delivery,Good service.
Standards
QB/T 2922-2018, QB/T 5083-2018
QB/T 1333 – 2018
Application Industry
