Shoe Flexing Tester HTX-013-Instrument Supplier-Hust Tony

Shoe Flexing Tester.Shoes bending machine dedicated testing sports shoes, casual shoes, work shoes, the finished shoes, after a long time and frequency.

Shoe Flexing Tester HTX-013

Shoes bending machine dedicated testing sports shoes, casual shoes, work shoes, the finished shoes, after a long time and frequency、fixed Angle continuous reciprocating bending , evaluate the flexing resistance or examine the degree of cracking.

Technical Parameters

Model	HTX-013
Fixture	4 groups (four samples can be tested each time)
Test speed	0 to 150 times/min, adjustable
Flexing angle	30° 、45° 、50° 、60° 、90° (adjustable )
Distance travelled by the toe jig	30 mm
Counter	LCD, 0~999,999

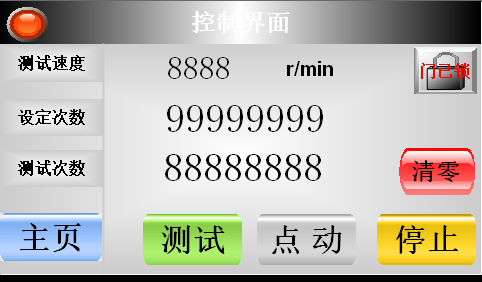

Control mode	Touch screen control
Dimension	97cm 77cm 80 cm
Net Weight	236kg
Power	1 ∮,AC220V,2 8A

Instrument Features

1.Body surface treatment: The United States DuPont powder, electrostatic spray painting process, high temperature 200℃ curing to ensure that the color will not fade.

2.The mechanical parts are composed of non-corrosive structural aluminum and stainless steel materials; 3.LED-SLD806 integrated display control box, menu operation mode;

4.Precision variable frequency drive motor, smooth operation, low noise

5.One-button automatic test, easy to operate;

6.The open-close protective transparent cover protects the operator’s hands and has a lid-and-stop protection sensor

7.High-precision selected bearings, stable rotation and long activity life

8.4-station structure design, stable bending and high efficiency;

9.The front and rear fixing fixtures can be adjusted, and the screw screw is tightly fixed

10.Speed adjustable, angle adjustable, movable heel fixed, size adjustable

11.English and Chinese language modes are available.
