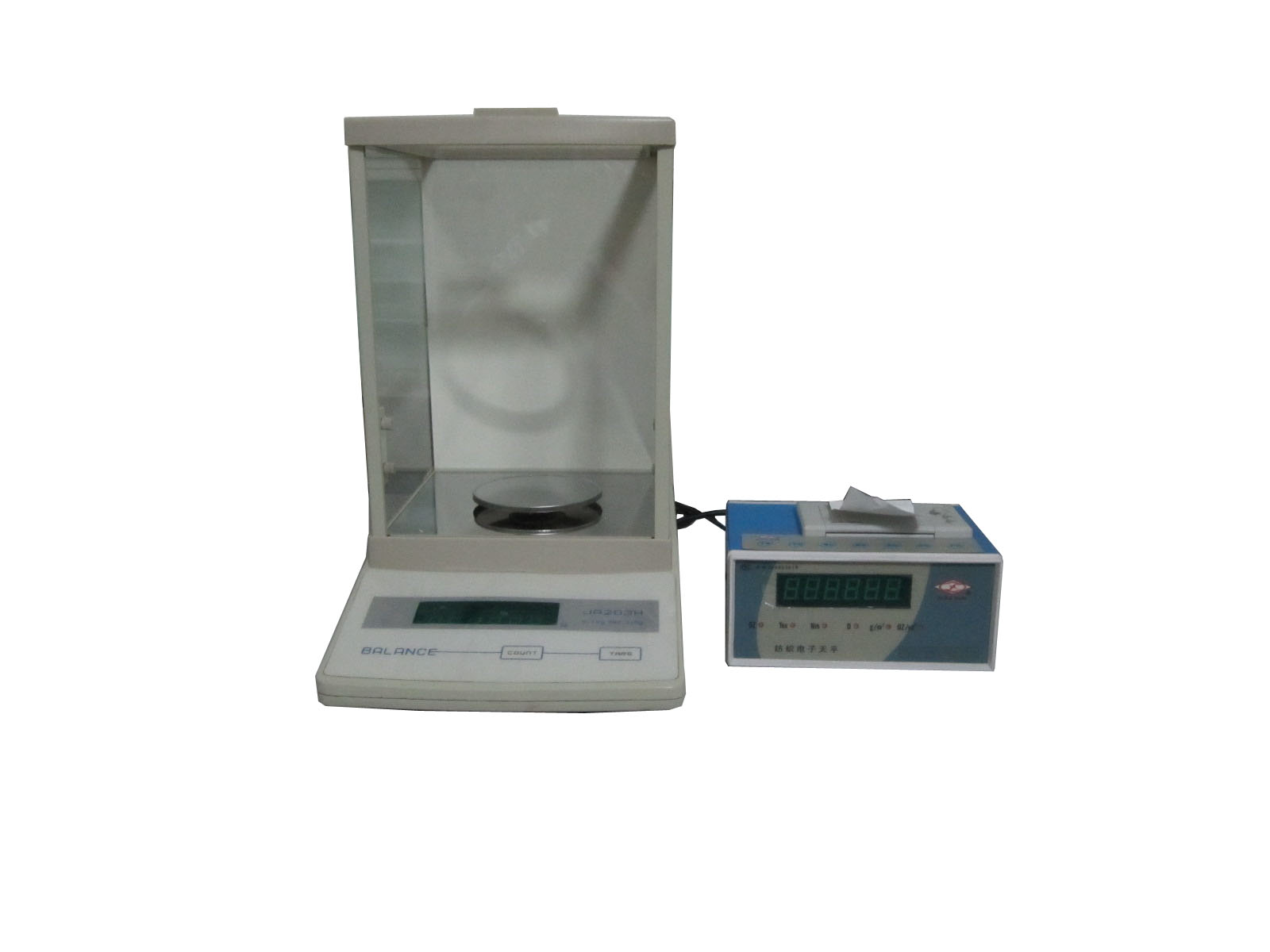

HTY-001 Electronic Yarn Count System Skein Balance Textile Testing Instrument

HTY 001纱支测试系统 HTY 001纱支测试系统
IMG 20170306 180839 scaled IMG 20170306 180839 scaled

It is used to quickly determine the linear density of various yarns

Widely used in Textile enterprises, Research institutions, colleges etc. 7 textile unit conversion OZ, Tex, Ne, D, g/m2, oz/ud2. Can be set time, date, yarn blended code, sample length,automatic preserve 100 groups of test datas, Can be to delete arbitrary data or continue test.

Standard :

ISO2060/3801,BS 2010-2471,ASTM D1907/2646/3776,IWTO 22-82,IWSTM 13 BSENISO 2060

Technical specifications

ModelHTY-001-110HTY-001-210
Max.weighting110g210g
Accuracy0.001g
Dimension of panΦ130mm
Output interfaceRS232C
Power220V,5A

Standards

ISO2060/3801,BS 2010-2471,ASTM D1907/2646/3776,IWTO 22-82,IWSTM 13 BSENISO 2060
