Leather Flexing Tester HTX-020-For Shoes Cover Flexing-Manufacturer

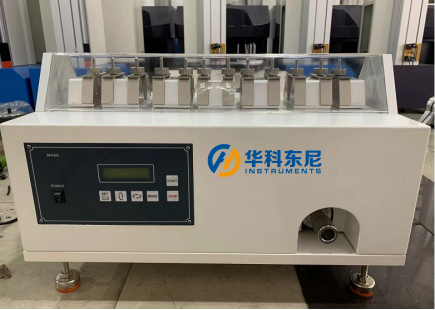

Leather Flexing Tester HTX-020
Leather Flexing Tester HTX-020 is used to assess the tendency of all type of shoe upper materials such as leather, poromeric, fabrics, plastic-coated fabrics and upholstery coverings to crack or break as a result of flexing in wear.
Technical Specifications
Model | HTX-020-6 | HTX-020-12 | HTX-020-24 |
Test Position | 6 | 12 | 24 |
Flexing Angle | 22.5° ± 0.5° | ||
Flex speed | 300± 30 cycles / flexes per minute | ||
Flex Space (moving stroke) | 19mm±1.5mm | ||
Counter | LCD 0 – 999,999.(adjustable) | ||
Power Supply | 1∮AC 220V 50/60HZ | ||
Dimensions ( L x W x H ) | 700x300x340mm | 780x450x360mm | 1100x510x220mm |
Net Weight | 45 | 60 | 70 |
Standards Accessories | 1 PC | Power line | |
Standards
ISO-4643, BS3429, SATRA TM25
