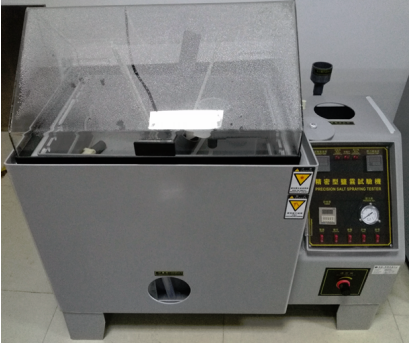

Salt Spray Tester TL-413-ASTM B117-Direct Manufacturer

TL 413 耐腐蚀盐雾机01 TL 413 耐腐蚀盐雾机01
TL 413 耐腐蚀盐雾机 TL 413 耐腐蚀盐雾机

Salt spray tester adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.



Standard :

CNS: 3627, 3385, 4159, 7669, 8886;
JIS: D0201, H8502, H8610, K5400, Z2371;
ISO: 3768, 3769, 3770,9227;

ASTM B117

Technical specifications

Inner Box Size (L× W× H)

60*45*40cm;

Outside Box Size(L× W× H)

108*67*112cm;

Temperature Range

 35  centigrade degrees to 55 centigrade degrees

Temperature Fluctuations

 ≤ ± 0.5 centigrade degrees

Temperature Uniformity

  ≤ ± 2 centigrade degrees

Temperature Precision

  ± 1 centigrade degrees

Test Chamber Temperature

 Salt Spray Method (NSS ACSS)35± 1 centigrade degrees
Corrosion-resistant Testing Method (CASS) 50± 1 centigrade degrees

Saturated air Barrel Temperature

 Salt Spray Method (NSS ACSS)47± 1 centigrade degrees
Corrosion-resistant Testing Method (CASS) 63± 1 centigrade degrees

Brine Temperature

35 centigrade degrees± 1 centigrade degrees

Spray Quantity

1.0~2.0 ml / 80cm2 / hr

PH

Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2

Lab Volume(Testing Chamber)

60L

Brine Tank Capacity

 15L

Power

AC220V, 10A,2KW, 50Hz

Multiple Safety Protection Devices

Current discharge protection, over pressure protection, over temperature protection, over load fuse protection

 Accessories

Testing Salt/ Measuring tank/ Equipment  each 1 set

Features

 Salt Spray Tester TL-413-ASTM B117-Direct Manufacturer

(1) Laboratory using PVC sheet, thickness 5 mm, the temperature reaches 80 degree Celsius;

(2) Laboratory closure with high impact acrylic sheet, 6 mm thick;

(3) Supplementary bottles of reagents attached to the water level perspective with hidden windows, clean easy, not easy to break;

(4) Saturated air barrel using SUS #304 stainless steel barrel high pressure barrel insulation is best;

5) Laboratory basketball adopt flat indexing frame, adjustable angle, surrounded by mist side down exactly the same place the large number of test pieces

Standards

CNS: 3627, 3385, 4159, 7669, 8886;
JIS: D0201, H8502, H8610, K5400, Z2371;
ISO: 3768, 3769, 3770,9227;

ASTM B117
