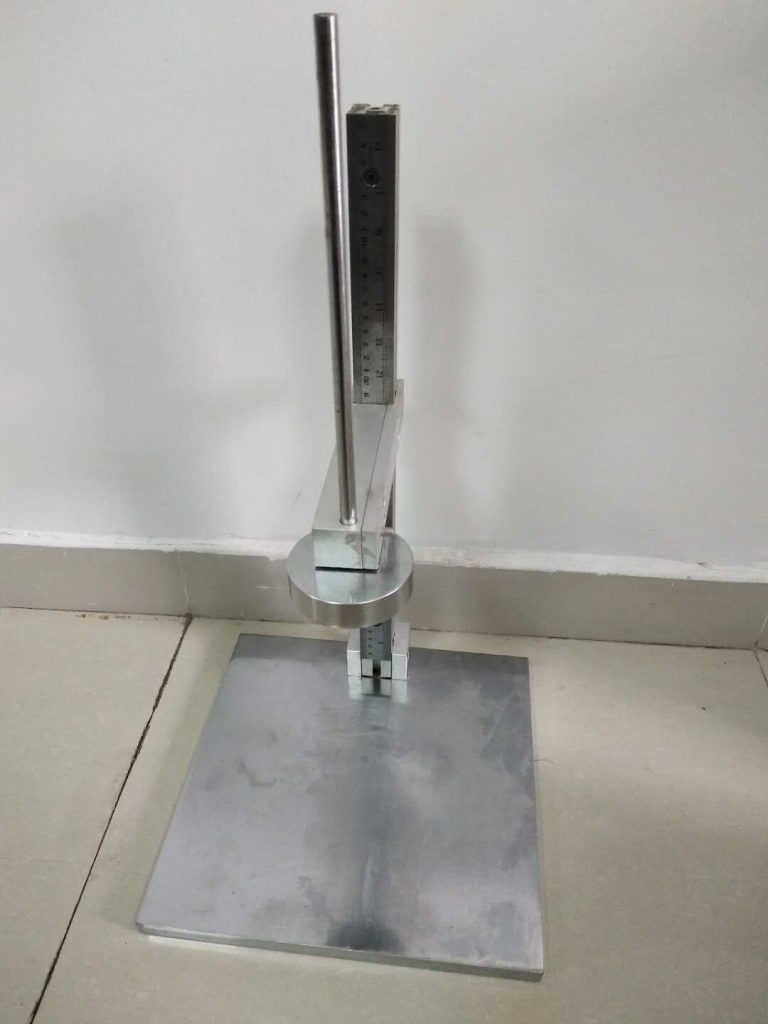

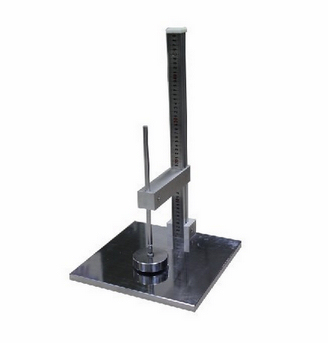

What is the function of the free fall drop testing equipment?
Detect items :
To simulate the mechanical damage through an impact action likely to be performed by a child. Assessment of sharp edges, sharp points and small parts may be carried out after impact.
Technical specifications
Dimension:300(l)x300(w)x16(h)mm
Adjust height: 0-200mm
Impact hammer diameter: 80.00mm
Impact hammer weight: 1Kg
With metric / lmperial unit height dicate ruler
Weight:12kg
Test Method
- Purpose: Useimpact strength test methods to simulate a child playing or abusing toys or other items to determine the possibility of injury.
- Applications:
2.1.Toys or items that used by children under 3 years old.
2.2. Toys such as rattle drum, rattle toys, toy with the drive device.
2.3 Applicable to standard En71-1 8.7 (1998) requirements.
- Equipments:
3.1 level steel 1 pcs
3.2 Metal weights – 1 ± 0.02kg weight, diameter: 80 ± 2mm
3.3 Scale – measured range 200mm.
Test Method:
4.1Specimen prepare:
Before the test, each sample run should be placed at such environment condition of a temperature 20-25 ℃, relative humidity 20 ~ 70% for at least 4 hours.
4.2. Procedure:
4.2.1. Put the weakest point of the sample on the steel surface, roping down the metal weights on the test sample from 100 ± 2mm height .
4.2.2. Repeat the test as 5.2.1 one time more.
4.2.3. Check test sample whether it has the small objects, sharp corners, sharp edges or any dangerous parts.
5.Test result:Assess and record the specimen test result.
