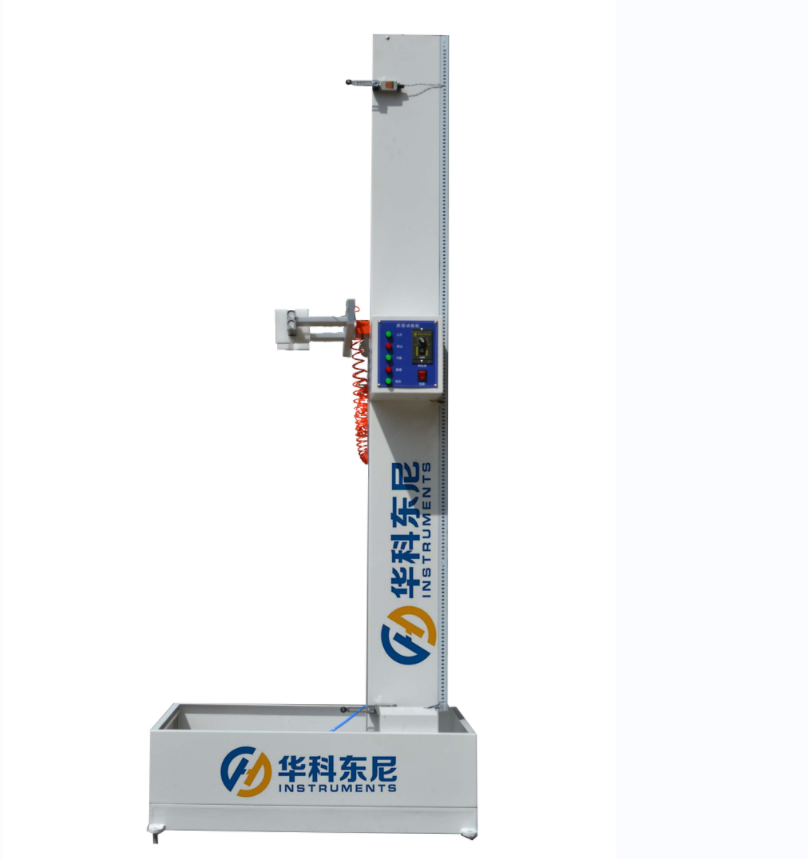

Mobile Phone Free Drop Testing Machine DZ-217B-Direct Manufacturer
Mobile Phone Free Drop Testing Machine
Mobile Phone Free Drop Testing Machine DZ-217B, this machine is the test sample is not packaged, attached with the random battery to shut down state fixed on the test equipment.
From a high place free fall on the surface of the steel plate, in addition to allowing the surface to have abrasions, small pits, function, appearance and assembly should meet the requirements of relevant standards
Youtube video : Click here
Technical Specifications
Model | DZ-217B |
The Maximum Allowable Weight of The Specimen | 5kg |
Drop Height | 300~1500mm |
Diameter Range of The Product | 10mm-120mm |
Product Height Range is | 5mm-25mm |
Drop Height Scale | Steel, minimum scale 1mm |
Air Source | ≥0.5MPa |
Power Supply | 220V 50Hz |
Features
1. The machine adopts electric lifting and pneumatic dropping structure, the lifting position is accurate, fast, and the dropping is real and effective.
2. Equipped with special pneumatic clamp (adjustable stroke), the front end of the clamp is equipped with silicone rubber (to avoid clamping products or operators), which can carry out a variety of specifications of mobile phone drop test.
3. The drop height is driven by the motor, the precision screw drive is adjusted up and down, the operation is stable, low noise, no need to move up and down manually, and there is a scale ruler, which can accurately know the drop height of the product, and the product can be dropped from different angles.
