Tension Test Equipment HTP 001 -Lab Micro-Controlled Single Arm

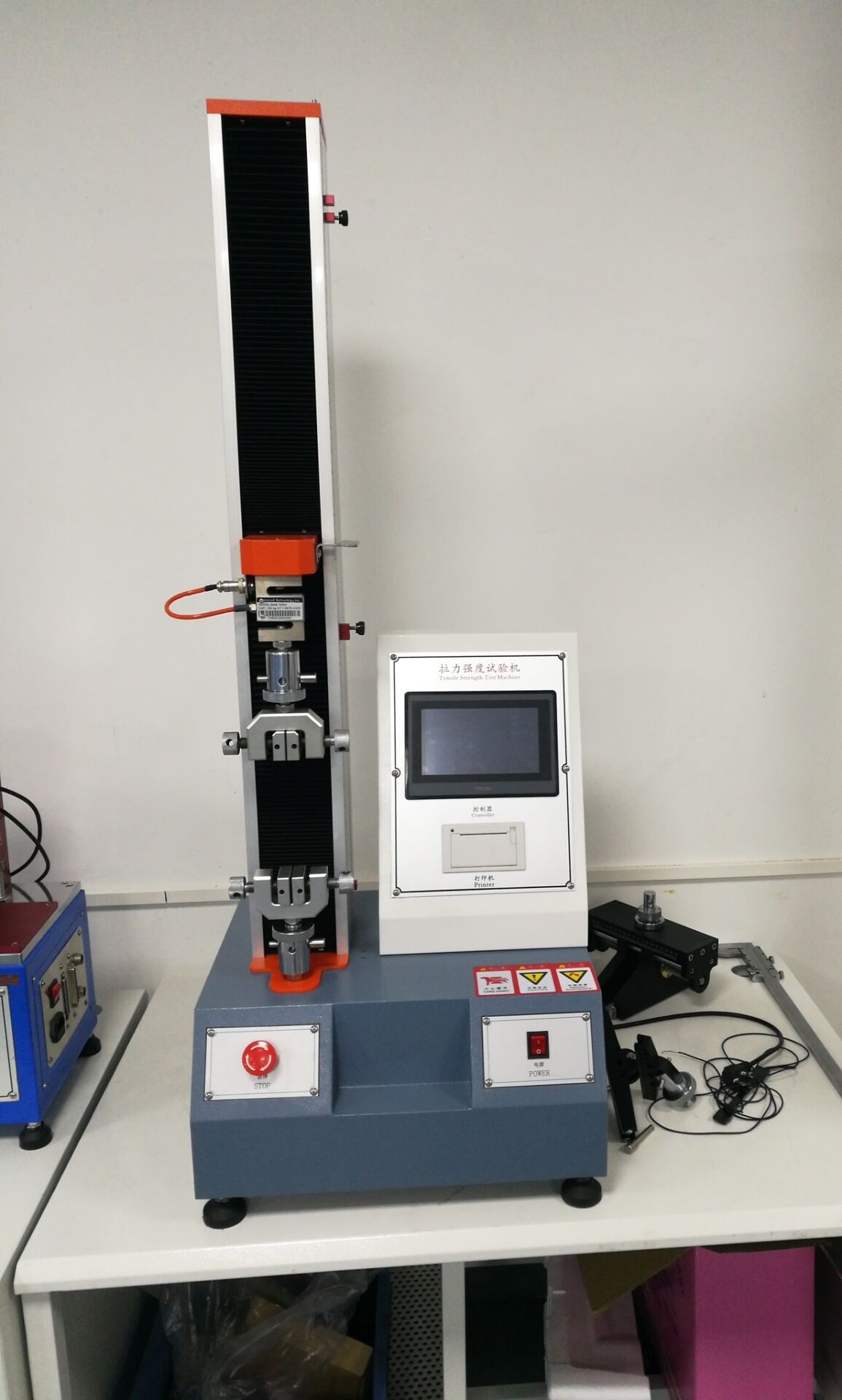

图2 图2
HTP 001 Single Arm Tensile Test Benchtop type HTP 001 Single Arm Tensile Test Benchtop type
图1 图1

Tension Test Equipment HTP 001: electronic fabric single column tensile tester is suitable for all kinds of textiles, rubber, plastic, synthetic leather, adhesive tape, adhesive products, plastic film, composite materials, electronics, metal and other industries. It can do tension, compression, bending, shear, stripping and other tests to determine the quality of the products.

Technical specifications

Tension Test Equipment HTP 001

Other model for option:HTP-001A Big LCD Control Screen / HTP-001B Computer Control with extensometer

Capacity :200KG (2,5,10,20,50,100,200kg for option)

Load accuracy: ±0.5% of value

Display : LCD English version, touch key

Units : Kg,lb,N

Data sampling frequency : 200times/sec

Load solution:1/±25000 of max loa

Load sensor :Pull and press sensor(max load)

effective test width :150mm

Max stroke :1000mm (650mm /800mm for option)

Test speed: 50-300mm/min stepless speed and 5 steps constant speed

Displacement accuracy :±0.5%

Breakpoint ratio :0~99%,users could set the right breakpoint time according to different test materials

Safety device :Up and down stroke limit device

Overload protection: If 10% over than max load,machine will automatic stop for protection

Result print :Built in Micro thermal printer

Grip :tensile fixture 1 set

Machine Size :450×500×1400mm

Machine weight:Approx 60 Kg

Power :220V/50Hz


Lab Micro-Controlled Single Arm
