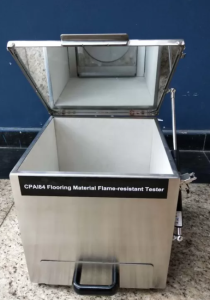

16 CFR 1630 &1631 Surface Flammability Tester HTB-066E

HTE-066E Surface Flammability Tester

Carpet standards are established to reduce fire-related hazards by providing a test that determines a carpet’s surface flammability when exposed to small ignition sources, thereby minimizing risks of death, injury, and property damage.

Specification

Main features

The test box made ofstainless steel : internal dimensions 304.8mm (12inch)*8mm (12inch) *304.8mm (12inch);

Box wall thickness: 6.35mm(1/4inch);

Square metal plate; material stainless steel 228.6mm (9 inch)*6mm (9 inch )*6.35 (1/4inch) mm, the middle of the opening diameter of 203.2mm (8inch) round hole;
Steel straightedge: index value of 1 mm;
Equipped with stopwatch accuracy 1s;
Equipped with polythene gloves;
Equipped with a desiccant of colour-changing silica gel – standard provisions;
Equipped with igniter;
Fume hood is optional;
Specimen size: 228.6mm (9 inch) *6mm (9 inch ).
Packing size : 450*450*660mm , G.W: 25kg

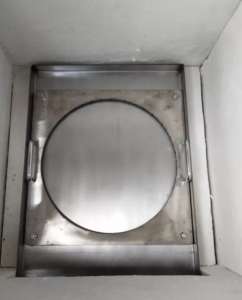

National standard square metal plate is optional:

Square metal plate: 230mm*230mm*5mm, the middle of the 205mm diameter holes
The test chamber made of stainless steel: internal dimensions 300mm × 300mm × 300mm
Fume cupboard: volume 2m³, equipped with observation glass window in front, with smoke exhaust fan on the top
