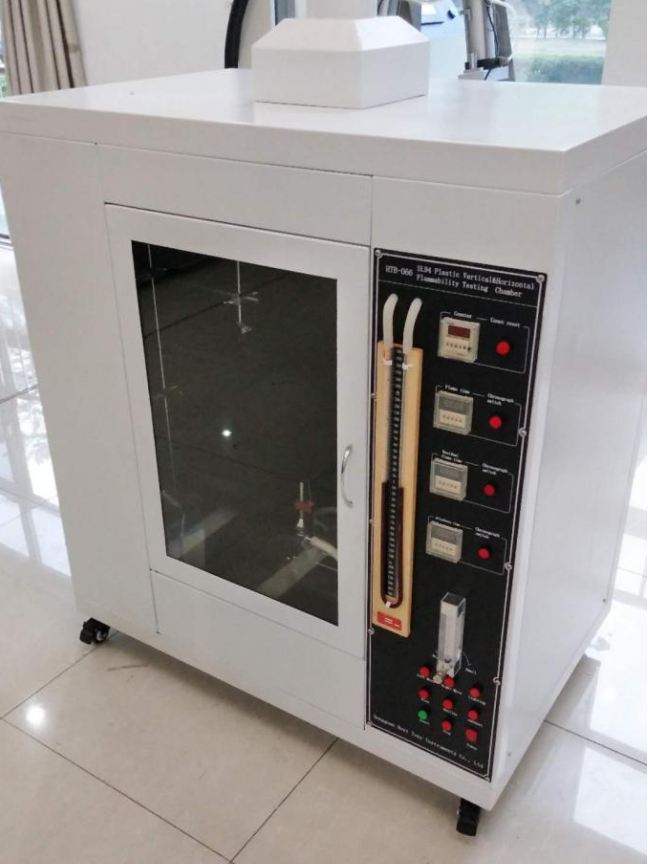

UL94 Horizontal Vertical Flame tester HTB-066-Plastics Flame Chamber




UL94 Horizontal Vertical Flame tester is used for the flammability testing of plastic materials such as V-0 V-1,V-2, HB, 5V, HF-1 HF-2, HBF material or foam , and used in consumer electric devices and appliances for flammability rating assessment. Such as insulating housing of household appliances, switch panel,the printed circuit board and insulating material etc
How to use ?
Youtube video :Click here
Standards:
UL 94< Applicances >> ,IEC 60950:1999, IEC 707 ,ISO 1210:1992 ,GB/T 5169, GB/T 4706.
Technical specifications
Model | HTB-006 |
Test room | 0.5 m³ |
Time adjustment of continuous flame | 0 ~ 99minutes99seconds |
Time adjustment of afterflame | 0 ~ 99minutes99seconds |
Time adjustment of afterglow | 0 ~ 99minutes99seconds |
Flame height | is easy to adjust,from 20mm to 175mm according to the standard. |
Timer | 0~999.9s+/-0.1 s (adjustable) |
Burn angle | 20 °,45 °,90 ° (that is 0 °) adjustable |
Burner | inner diameter Ø9.5mm±0.3mm, (Bunsen burner) length of 100mm |
Gas | 98% methane |
Temperature testing range | 0~1000 degree |
Power | C 220V,50Hz |
Instrument Size | 1100 mm×700 mm×1300 mm |
Packing measurement | 112*85*150 cm |
Gross weight | 150K kg |
Accessories | 1.Micro gas cylinders 2 pcs, 2.lighting device, air extractor 3.Gas flow control valve, 4.Gas pressure gauge, 5.Gas pressure regulator, 6.Gas flow meter,Gas u-shaped 7.pressure gauge and specimen clamp,, 8.power line 1 pcs |
