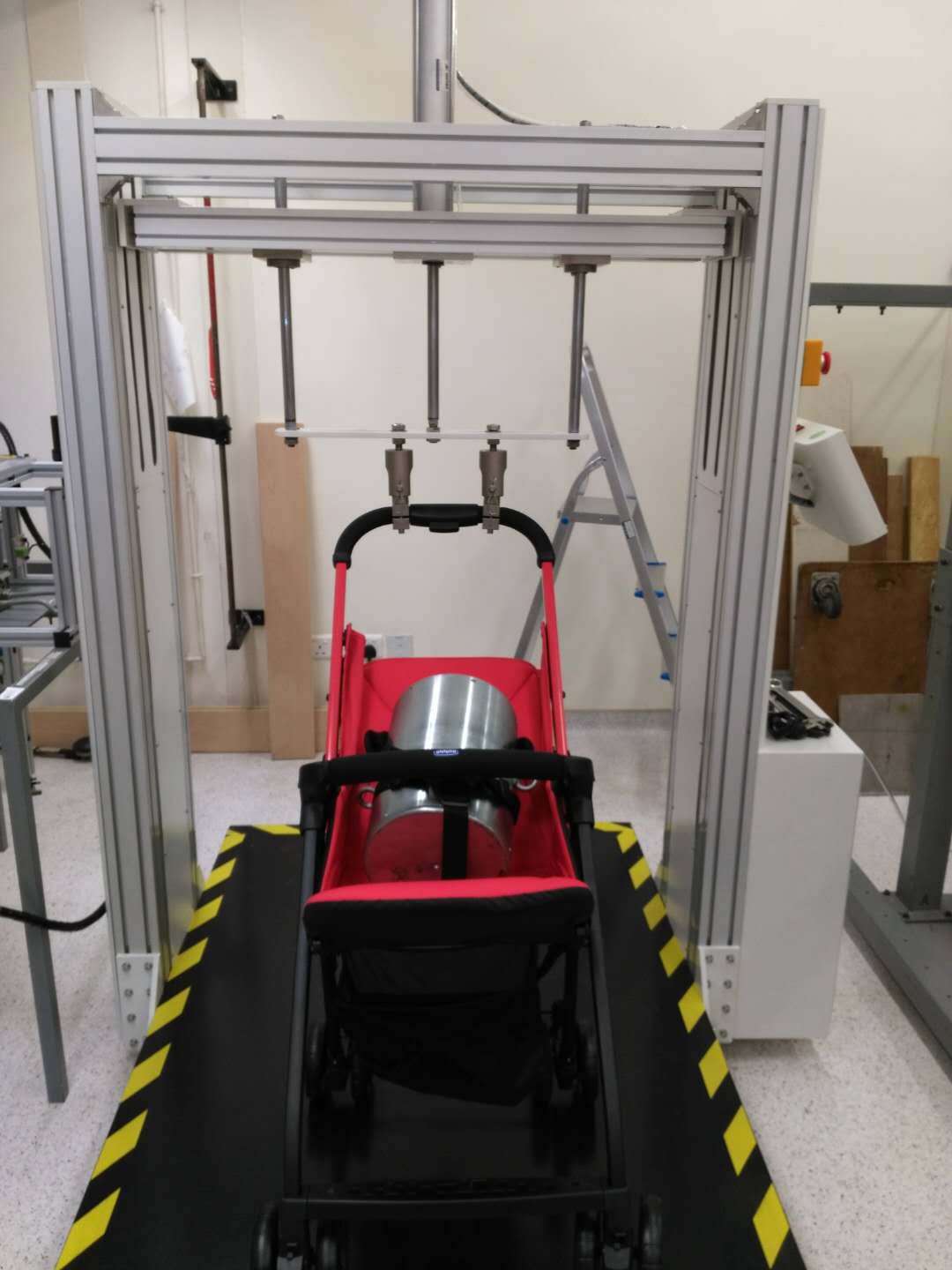

Baby Stroller Handles Durability Tester TC-002B

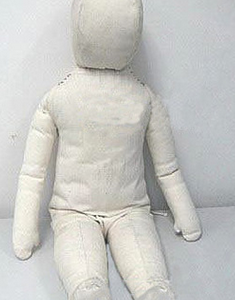

Baby Stroller Handles Durability Tester.Suitable for baby Stroller simulation over the barrier when the lifting and under the action of the durability test, the test method is to place the baby model in the car, raised when the car back to the ground 120±10mm, under pressure When the front wheel to the ground 120±10mm, 15±2 times per minute, and continue to test the number of times after the test, the visual car with or without damage.

 Standard:

 EN 1888-2012 Section 8.10.6.2.2, 8.10.6.2.3;

GB14748-2006 Section 5.12

Youtube video :Click here

Technical Specifications

Model

TC-002B

Display

touch-screen, PLC control

Test frequency

15 ± 2 cycles/min.

Air cylinder stroke

 200~350mm adjustable

Test area

100x175cm

Beam height adjust

power-driven 35cm

Test station

one position

Grip distance

11cm to 41 cm

Height of Test wheels from ground

120±10mm

Test pressure

450N±5% adjustable

Test cycles

10000 cycles

Auto counter

0~99999times, electricity, power cut memory function

Machine dimension

138x175x200cm

Power

AC ~220V 50Hz

Weight

About 450KG

Standards

EN 1888-2012 Section 8.10.6.2.2, 8.10.6.2.3;

GB14748-2006 Section 5.12
