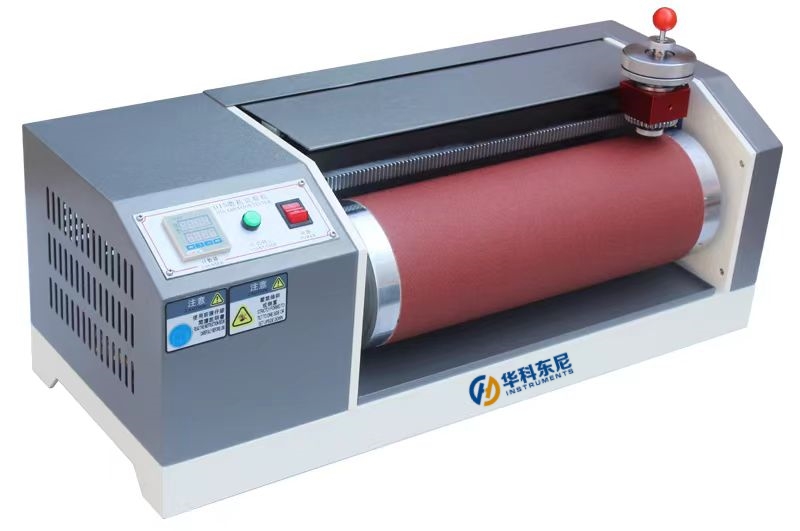

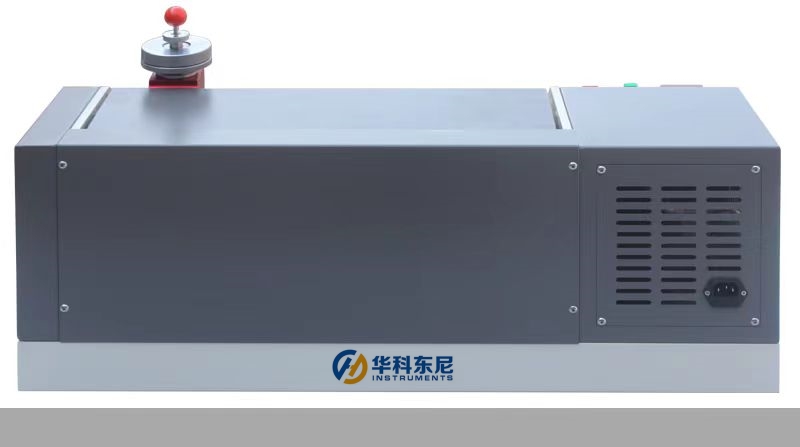

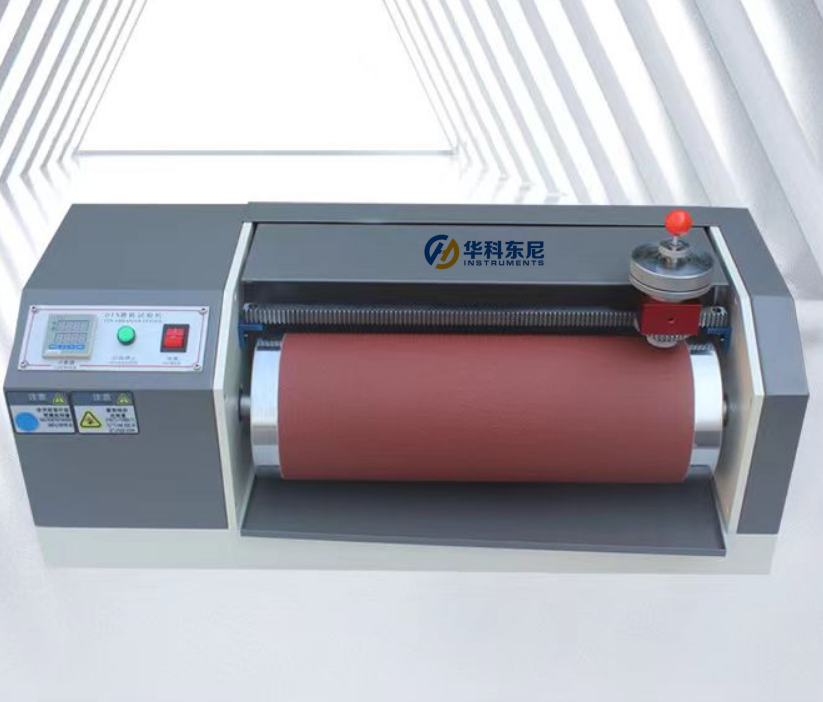

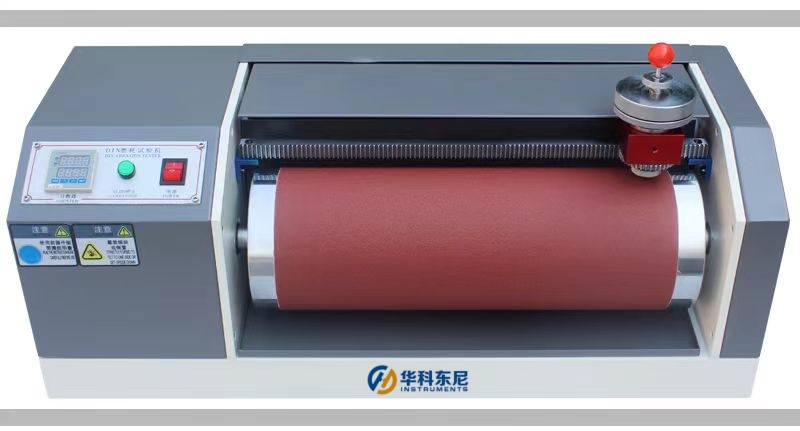

Din Abrasion Tester HTX-007
DIN Abrasion Tester is used for determine abrasion of flexible materials, such as rubber, tires, leather etc. DIN abrader complies with DIN 53516, ASTM D5963-04, ISO 4649, BS-903, etc.
Applicable extensive material abrasion characteristics, such as the elastic material, rubber, tires, conveyor belts, shoes soles, soft synthetic leather etc. With hight efficiency, good reproducibility and easy operation.
Working Principle

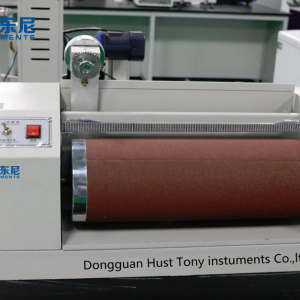

1. Din Abrasion Tester HTX-007 consists of a rotating roller whose surface is glued with 60# sandpaper. Din Abrasion Tester is one of the most commonly used rubber wear test methods. The Din Abrasion test machine is equipped with a rotating block for both rotational and non-rotational tests.

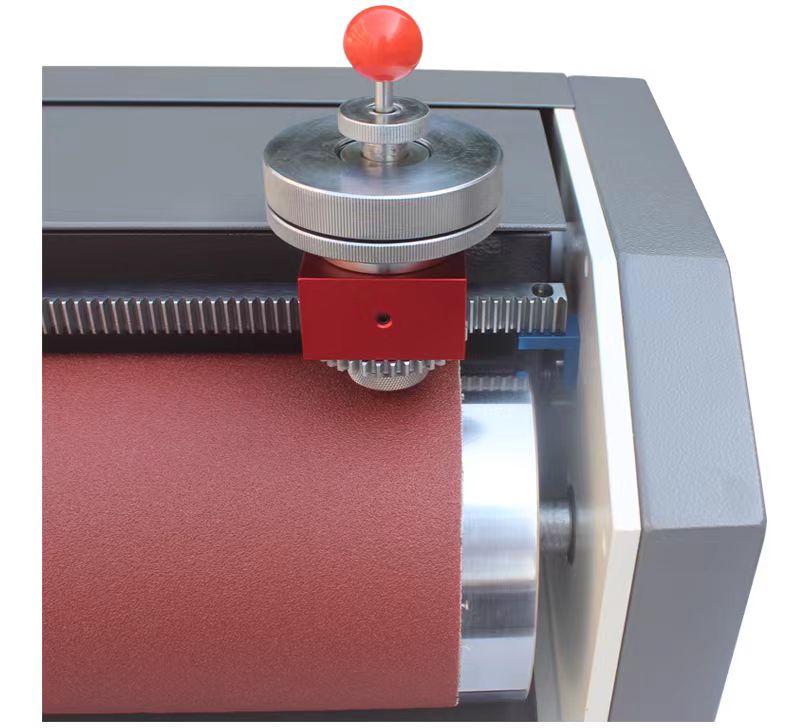

2.The rubber specimen is clamped on the specimen holder, and the DIN wear machine rubs the specimen on the drum with a certain inclination and a certain load.
3.The volume loss of the specimen after friction is then measured at a certain distance.

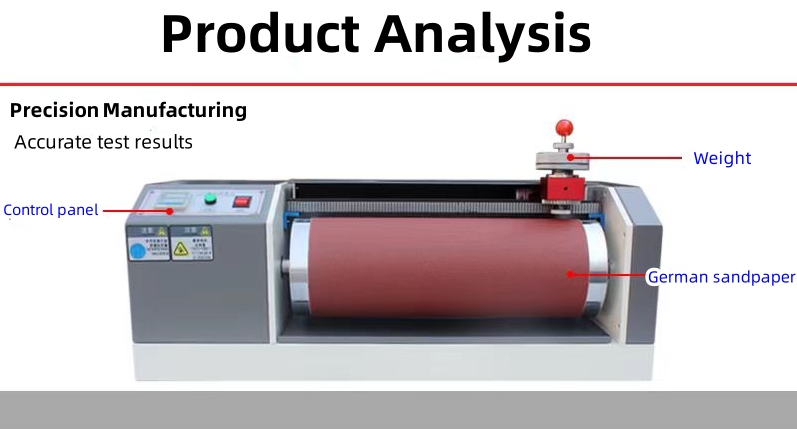

Product Analysis

Technical Specifications
Model | HTX-007 |
Sample Size | Φ16 mm x thickness of 6-15 mm |
Sample Moving Speed | 4.2mm per cycle |
Clamp Load Weight | 2.5N |
Load Weight of Weights | 2.5N,5N |
Roller Diameter | 150mm |
Roller Length | 460mm |
Roller Speed | 40rpm |
Wear Trip | 40m/20cm |
Wear Speed | 0.32m/sec |
Inclination Angle of The Holder | 3°(the central axis of the holder to the perpendicular in the directionof rotation) |
Dimension | 70×30×30cm |
Weight | 61KG |
Power | 1∮, AC220V,3A |

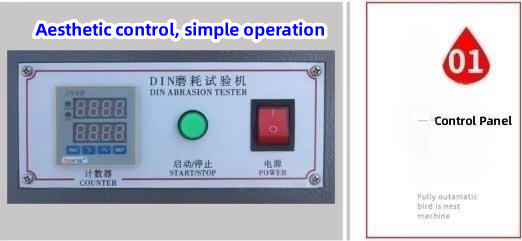

Features
1. The housing is made of precision steel and treated by anti-corrosion and anti-rust processes.
2. Mainly composed of a laterally moveable test piece holder and a rotatable drum to which the abrasion sheet is attached.
3. The abrasive sheet is easy to be replaced with the help of double-sided adhesive tape and an appropriate amount of liquid glue.
4. Supports both rotating and non-rotating test pieces.


5. Direct manufacturer, more than 17 years of testing instrument manufacturing experience, strict quality, high precision.

Standards
DIN-53516, JIS-K6369, JIS K6264-2, GB/T 20991 section 8.3, GB/T 20265, GB20266-2006, GB/T 9867,
EN ISO 20344-2021 section 8.3, AS/NZS 2210.2 section 8.3, ISO 4649, SATRA TM174, BS903-A9 Method A,
ASTM D5963, ISO20871, QB/T2884, SATRA TM 193, EN 12770
Application Industry
