Shoe Heel Impact Tester TX-530
Shoe Heel Impact Tester is specially designed to test the heel resistance of women’s high heels, middle heels continuous impact number, under a certain energy and frequency.
The machine’s disc blade continuously hit the heel until heel fatigue breakdown, to understand the heel to the continuous force bearing indicators, judge the durability and quality of the heel.
Youtube video :Click here
Technical Specifications
Model | TX-530 | ||
Capacity | 0~18.3J | 0~19J | |
Min.Scale | 0.86J | 0.5J | |
Striker Head (LxWxT) | (35+2)x25x6mm | (32 +1)x25x6mm | |
Striker Head Corner Radius | R3mm | ||

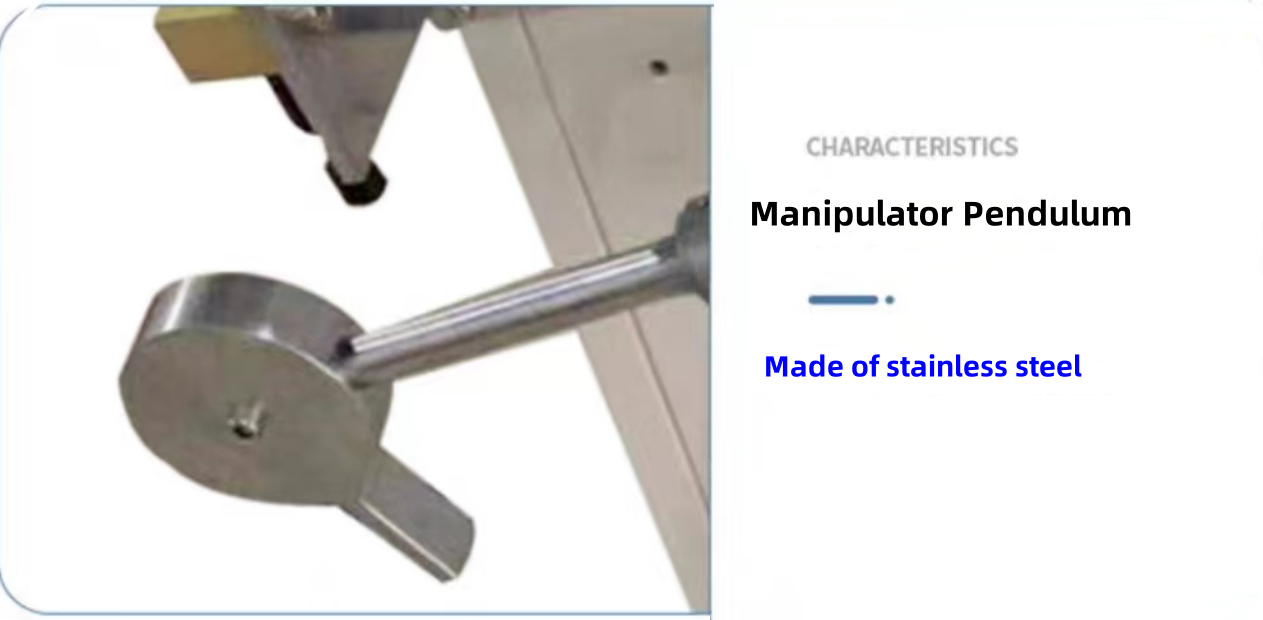

Pendulum | Thickness 49mm | ||
Pendulum Shaft | 25mm | ||
Pendulum Moment @ Horizontally | 17.3N.m | ||
Adjustable Range of Base Clamp | (H)~25mm,angle 0~45degree | ||
Net Weight | 101kg | ||
Gross Weight | 121kg | ||
Machine Dimension | 700*600*1150mm(L*W*H) | ||
Package Dimension | 800*700*1250mm(L*W*H) | ||
Standards | BS-5131-4.8 IS0 19953 QB/T2863 | SATRA TM20 | |
Features
1. The company develops a control system with timing and counting functions by itself. There are start, stop, pause, count and clear functions on the test control panel.
2. Fast delivery,Good service.
Standards
BS-5131-4.8, ISO 19953
SATRA TM20 ,QB/T2863
