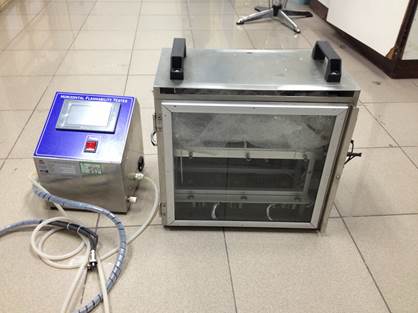

Horizontal Flammability Tester HTB-004
Horizontal Flammability Tester is used to test textile and material used in vehicles horizontal burning rate when exposure to a small flame.
Youtube video :Click here
Technical Specifications
Model | HTB-004 | |
Test Chamber Dimension(L*W*H) | 381x 203 x 356mm | |
Specimens Clamp | U valley | |
Frame | 330 x 50mm | |
Specimens | 356x100mm | |
Fire Nozzle Diameter | 9.5mm | |
Fire Nozzle Angles | 90 Degree | |
Length | 100mm,come with adjustable hole. | |
Flame Height | 38mm | |
Burning Time | 15s | |
Outer Dimension | 570*260*370mm (L*W*H) | |
Power | AC220V 50Hz 3A | |
Standard Accessories | 1 Pcs | Micro gas cylinders |
1 Set | Clamp | |
1 Pcs | Power line |
Features
1. Stainless steel test cabinet, equipped with glass observation plate, sturdy and durable, easy to maintain.
Standards
ASTM D5132, ISO 3795, FMVSS 302 , JIS D1201, FZ/T 01028, GB/T 8410, GB/T20953,
SAE J369, GMW3232
