Perspiration Tester HTC 006-For Textile Testing-Manufacturer-HUST TONY

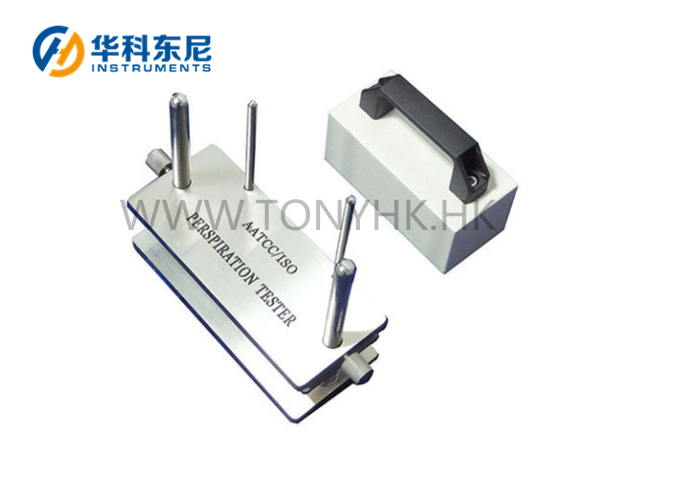

Perspiration Tester HTC 006
Perspiration Tester HTC 006 is designed for color fastness test of various kinds of textile materials and textiles to perspiration, sea water, saliva, distilled water,etc.
Perspiration tester is a stainless steel frame which can test 20 10cm×4cm test samples according to AATCC or 10 samples as per ISO standard.
Technical Specifications
Model | HTC-006 | |
Weights | AATCC standard weight:3.63kg(8lb) ISO standard weight:4.10kg(9lb) | |
Standard accessories | ISO Acrylic separator plates | 21 Pcs |
AATCC Acrylic separator plates | 21 Pcs | |
Stainless steel frame | 1 Pcs | |
Weights | 2 Pcs | |
Optional Accessories | 1 Set | |
1 Set | ||
1 Set | ||
1 Roll | ||
1 Roll |
Test Procedure
To test colour fastness to perspiration, specimens (fabric, yarn or fibre) in contact with Multifibre Adjacent Fabric, are treated in two different solutions containing histidine, one alkaline and one acidic. The specimens are subsequently drained and placed under constant pressure between separator plates in the Perspirometer. Up to 20 test specimens can be accommodated.
The units are then placed in an Incubator for 4 hours at 37˚C (body heat).
After drying, change in colour of the specimens and staining of the adjacent fabrics are assessed with Grey Scales.
Separate Perspirometer units must be used for alkaline and acidic tests to avoid chemical interaction.
If you want to learn more, please click this link
Standards
Perspiration | GBT 3922,AATCC 15,1S0105-E04,JIS L0848 |
Sea Water | GB/ T5714,IS0105-E02,AATCC107 |
Water | GB T5713,IS0105 E01,AATCC106 |
Saliva | GBT18886 |
