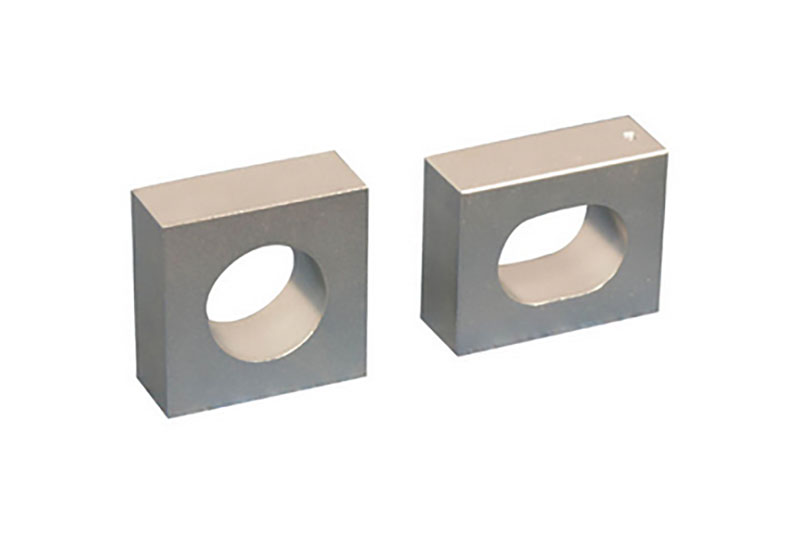

Rattle Test Fixture A/B TW-203-Dactory Direct Manufacturer








Rattle Test Fixture A/B is a simulation of children’s oral cavity capacity, used to test whether toys or the parts of toys may cause choking or swallowing. Mainly used in toys intended for children who are too young to sit up unaided.
Standard :
EN71-1-2011,ASTM F963,16CFR 1510,ISO 8124-1,GB 6675-2, 8124-1, GB 6675-1
Youtube video :Click here
Technical specifications
Model | Oval (Template A) | Round (Template B) |
Inside hole radius/ Inner Diameter(mm) | 17.5+0/-0.05 | 42.7+0/-0.1 |
Width(mm) | 65±2 | 73±2 |
Inside Hole Width(mm) | 35mm | / |
Inside Hole length(mm) | 50+0/-0.1 | Φ42.7+0/-0.1 |
Length(mm) | 80±2 | 73±2 |
Thickness(mm) | 30+0.1/-0 | 30+0.1/-0 |
Material | Aluminum metal alloy, surface oxidation | |
Standards | EN-71-1 section 8.16 ASTM F963 section 4.22.1, 4.23, 4.24 16CFR 1510 ISO 8124-1section 5.3 GB6675-2 section 5.3 | EN-71-1 section 8.16 and 8.33 ASTM F963 section 4.22.2, 4.24.2, 4.32 16CFR 1510 ISO 8124-1section 5.3, 5.6 GB6675-2 section 5.3, 5.6 |
Weight | 300g | 300g |
Test Range
1. Rattle-shaped toys and squeeze toys with or without noise making features;
2. Teethers, toys or components intended to be chewed on;
3.Hand-held activity toys;
4.Books and building blocks covered by textile or vinyl;
5.Removable components of toys intended to be strung across a crib, playpen or perambulator;
6. Removable components of baby gyms;
7. Legs of baby gyms.
8. Play figures
Note: The tester do not apply to soft-filled parts of a toy or parts of fabric. And do not apply to rigid elements having a major dimension equal to 30 mm or less.
Standards
Rattle Test Fixture A/B
ISO8124-1 4.5/5.3;16 CFR 1510;
ASTM F 963 4.21;
EN71-1-2014+A1-2018 Geometric shape of certain toys;
GB6675-2003 A.5.3
