Shoelace Abrasion Tester HTX-582-Manufacturer-HUST TONY

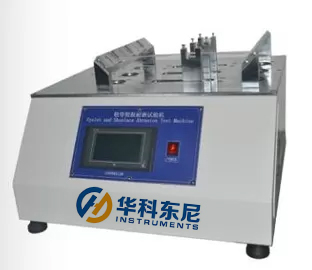

Shoelace Abrasion Tester
Shoelace Abrasion Tester.Shoes eyelet and laces wear test machine is used to test shoelaces repeated friction standards and eyelet rub fastness, or determination of the friction properties of the shoes eyelet on the standard shoelace.
The instrument is suitable for all types of laces and eyelets.
Youtube video :Click here
The laces will be rubbed at a fixed angle where they are in contact with the ring. The laces are then fixed with standard weights throughout the abrasion test until the laces break
Test Principle
The laces will be rubbed at a fixed angle where they are in contact with the ring.
The laces are then fixed with standard weights throughout the abrasion test until the laces break.
Technical Specifications
Model | HTX-582 |
Max Space From Moving Grip to Fixed Grip | 310mm(max) |
Moving Grip Stroke | 35mm |
Moving Grip Speed | 60±6cycles/min |
Test stations | 4 or 6 work station (optional) |
Template Rule | Angle52.2°,Space120mm |
Weights | 250±3g,4pcs |
Counter | Touch-screen control,0~999,999 |
Machine Size | 660×580×420mm(L×W×H) |
Weight | 66kg |
Power | AC110V,10A/220V,5A |
Features
1. Speciality in testing equipment.
2. Various products to choose from.
3. Accept customization
4. Excellent after-sale service.
Standards
DIN-4843,QB/T 2226
SATRA PM154,GB/T 3903.36
ISO 22774
