Small Ball Test Template TW-205-Direct Factory-HUST TONY

EN 71 ISO 8124 Test Fixture for Small Balls EN 71 ISO 8124 Test Fixture for Small Balls

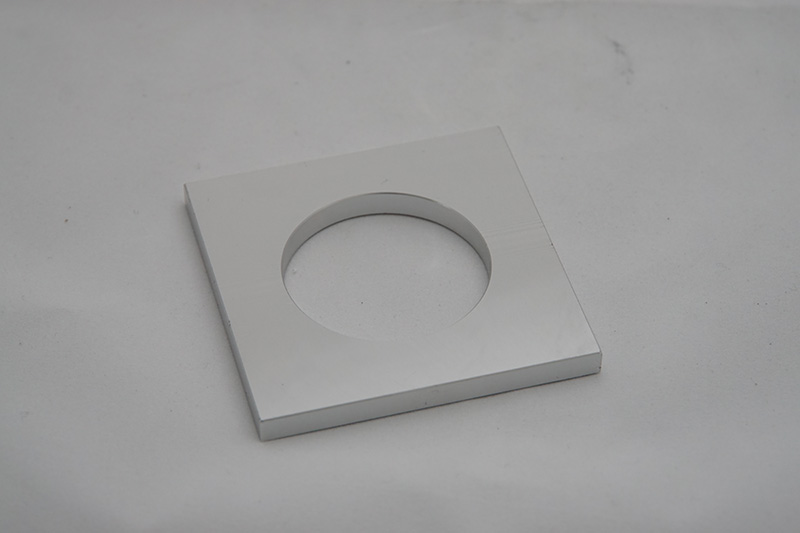

TW-205 Test Fixture for Small Balls Template (1) TW-205 Test Fixture for Small Balls Template (1)
TW-205 Test Fixture for Small Balls Template (3) TW-205 Test Fixture for Small Balls Template (3)

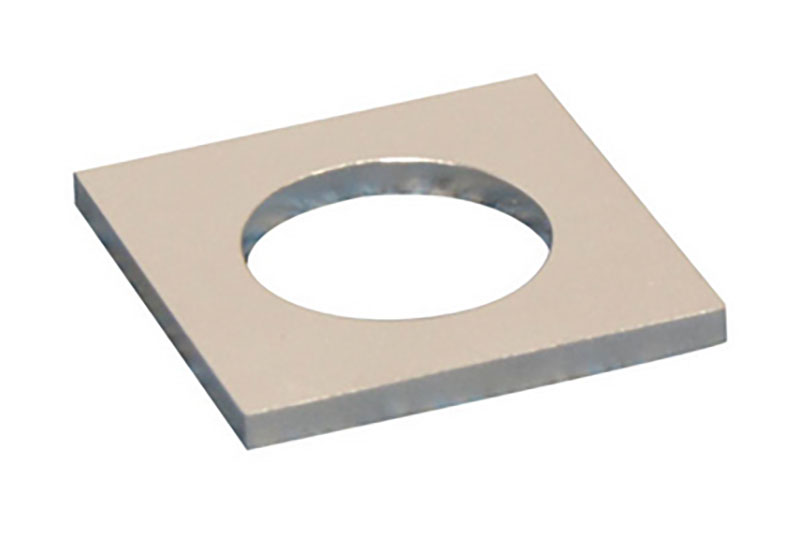

TW-205-Test-Fixture-for-Small-Balls-Template-2 TW-205-Test-Fixture-for-Small-Balls-Template-2
Small Ball Test Template is used to examine a toy up of whether small ball accessories may result in the child swallow, stop breath way and esophagus to cause choking danger or not. mainly used to test suction cups toy and ball toy or toys parts.


Standards :

EN71-1-2014+A1-2018 , ASTM F963 ,ISO 8124-1, GB6675-2

Youtube video :Click here

Technical specifications

Model

TW-205

Material

Aluminum metal alloy, surface oxidation

Inner diameter

44.5mm

Dimensions (L x W x H)

72.6 x 72.6 x 6.35 mm

Net Weight

30g

Method

 Small Ball Test Template TW-205-Direct Factory-HUST TONY

 1. Position and clamp Template C so that the axis of the slot is substantially vertical and the slot is unobstructed at its top and bottom openings.

 2. Place the ball or the suction cup or the toy with an attached suction cup without compressing it, in any orientation in the slot so that the force on the ball or suction cup or toy with an attached suction cup is only the force due to its mass.

 3. Determine whether the ball or suction cup or toy with an attached suction cup passes entirely through Template C.

Standards

EN71-1-2014+A1-2018

ASTM F963

ISO 8124-1

GB6675-2
