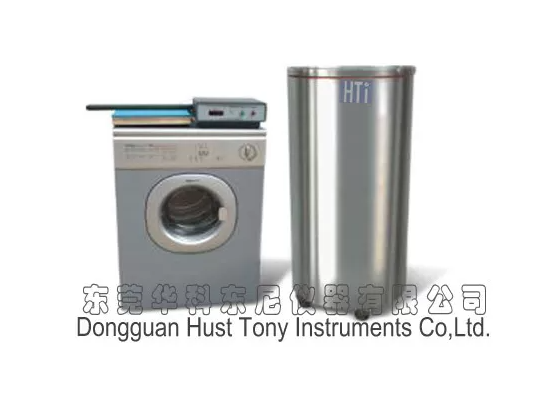

HTY-007 Triboelectric Textile Testing Equipment GFZ/T01060
Used to determine the static electricity properties of fabrics after triboelectrification.
Standard :
GFZ / T01060
Technical specifications
| Test range of Charge | ±0.001μC ~2μC(±1×10-9C~±2×10-6C) |
| Resolution | 0.001Μc |
| Faraday Cylinder | Diameter 500mm, Height 1000mm |
| Roller inner diameter | ≥460mm |
| Roller depth | ≥350mm |
| Roller speed | 50r/min |
| Roller Liner | Chinlon Standard Cloth |
| Air volume | 2m3/min |
| Roller inner temperature | 60±10℃ |
| Power | AC220V±10% |
| Dimension | Faraday Cylinder:520×1150mm(D×H) |
| Roller Friction Machine | 600×560×840mm(L×W×H) |
Standards
GFZ / T01060
