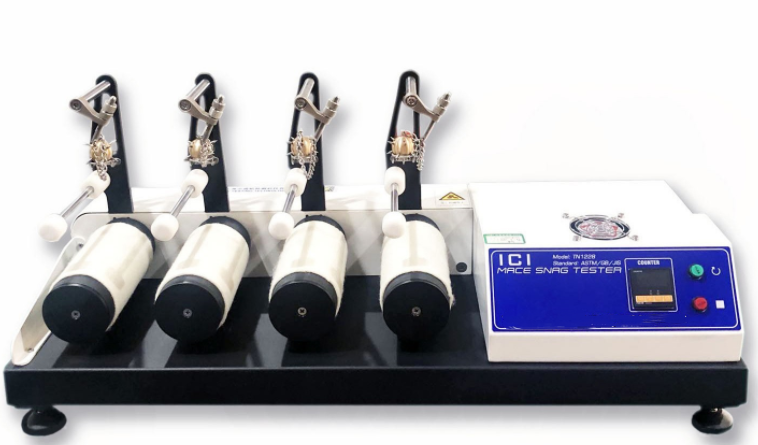

ICI Mace Snag Tester HTF-003A

ICI Mace Snag Tester HTF-003A applies to rapidly determine the snagging resistance of heavyweight fabrics such as apparel, upholstery, and automotive interiors fabrics etc.

Other related products

Related Products 1

Related Products 2

Youtube video :Click here

Test Procedures

1. The cylindrical specimen is placed on a rotating drum and a hammer suspended by a chain is placed on the specimen surface.

2. When the rotating drum rotates at a constant speed, the DingTalk randomly flips and jumps, jamming the sample on the sample surface.

3. After the specified number of revolutions, the degree of seizure of the sample is assessed by comparison with the standard sample.

Technical Specifications




Working Position



Rotate Speed


Drum Diameter

∮82mm, width 210mm


LED Display, 0~9999

Mace Weight


Wool Felt Thickness


Wool Felt Length



Length: 10+1mm, Tip radius: RO.13mm

Distance Between Nail Hammer and Guide Rod


Power Supply

AC220V 50/60HZ


920x480x400 mm

1000x480x400 mm

Standard Accessories

Rubber rings   4 Pcs

Felt Sleeves    2  Pcs

Power Cord   1 Pcs

User’s Manual   1 Pcs

Test Purpose

Due to external action, the fibers and yarns of the textile will be pulled out from the original position by the hook, forming deformation, protrusion, wrinkling, etc.

On the surface of the textile to check the anti-hook of the textile. After understanding the phenomena or situations that occur after the textile has been tested, it is necessary to test the product for anti-hanging wire.

ICI Mace Snag Tester HTF-003A can quickly detect how easily a fabric is stranded (i.e. the yarn falls off the fabric).


ASTM D3939

GB/T 11047

JIS L 1058

VDA 230-220
