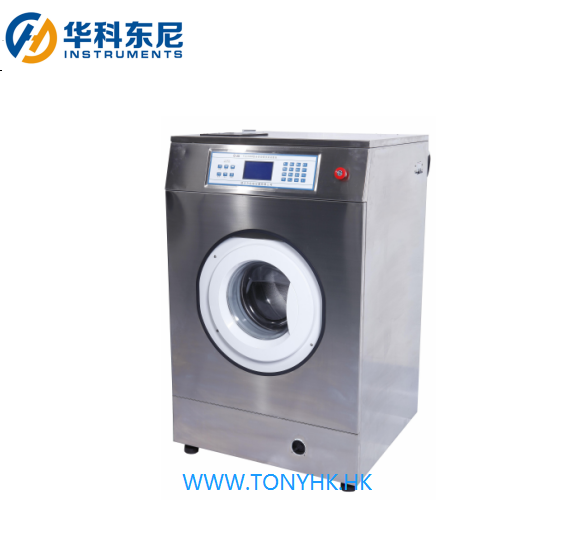

ISO 6330 Fully Automatic Shrinkage Test Wash Machine – TF-089


Test items:
For a variety of cotton, wool, hemp, silk, chemical fiber fabrics, clothing or other textiles after washing Shrinkage and relaxation test.
Test standard:
FZ/T70009、ISO5077/6330、IWS TM31、BS 4923、 EN25077/26330、JIS L1909、Marks and Spencer
Technical specifications
1, category: Type A washing machine – front door feeding, horizontal drum type
2, rated loading capacity: 5 kg
3, inner diameter: (52.0±0.1) cm
4, inner depth: (31.5±0.1) cm
5, outer drum internal diameter: (55.4±0.1) cm
6, rotation action: Normal ,softness and moderation
7, speed: washing 52r/min, dehydrated speed 500r/min;
8, drainage rate: >30L/min
9, water level detection: 2st 10cm and 13cm
10, temperature detection: temperature sensor, digital set range: room temperature -99C±1C, resolution 0.1C
11, a total of 13 sets of standard procedures and 3 sets of self-editing programs for customers to choose from.
12, heating power: 5.0±2% KW
13, form factor: 750×700 ×1200mm (L×W×H)
14, power : three-phase four-wire system 380V
15, weight: 250Kg
Feature
1, inside and outside pure stainless steel production, processing technology is excellent, never rust.
2, oversized LCD blue screen display
3, built-in 13 sets of automatic washing process, and support personalized programming, to provide self-programming storage.
4, suspended bile barrel structure, no need to install the foot.
5, three-phase four-wire 380v power supply, heating speed, more smooth operation.
6, the use of electrode-type water level meter for the water level fixed point accurate detection.
7, equipped with electronic lock safety device, after the test can be opened 30 seconds sample door.
Standards
FZ/T70009、ISO5077/6330、IWS TM31、BS 4923、 EN25077/26330、JIS L1909、Marks and Spencer
