Martindale Abrasion & Pilling Tester -Heads: 4 / 6 / 8

ISO 20344 Martindale Rotary Abrasion Tester ISO 20344 Martindale Rotary Abrasion Tester
Martindale Abrasion Fabric Testing Instruments, Martindale Abrasion Fabric Testing Instruments,
50 R/Min Martindale Rotary Abrasion Tester, 50 R/Min Martindale Rotary Abrasion Tester,

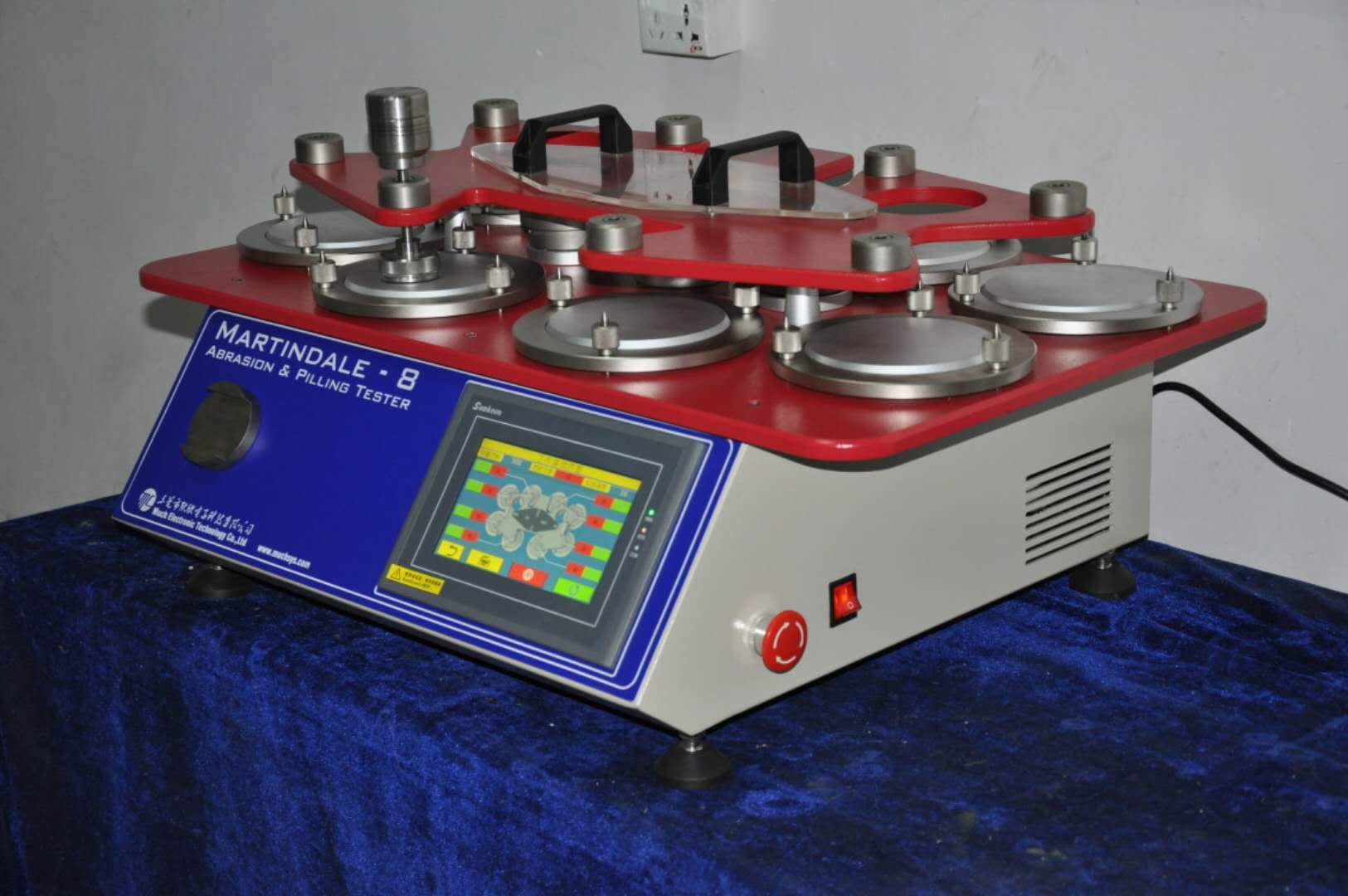

Martindale Abrasion & Pilling Tester, is to determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abrasives at low pressures and in continuously changing directions. The amount of abrasion or pilling is compared against standard parameters.

Standard :

EN ISO 12945-2,ISO 12947-1/2/3/4,ISO 20344,ASTM D4966,ASTM D4970,BS EN 388,BS EN 530,BS 3424,BS 5690,JIS L1096,DIN 53863,DIN 53865,SATRA TM31,IS 12673,IWSTM 112,IWSTM 196,IWTO 40-88,SFS 4328,NEXT 16,GMW 15651,ISO 5470-2,M&S 17,M&S 19,M&S 19C,NEXT 18,NEXT 18a,NEXT 18b,

Technical specifications

Testing Heads:
4/6/8
Accumulate count:
1~99999 times
Relative velocity:
50 r / min
Pressurized material weight
wear resistance test:
Clamps component 200 ± 1g(1.96N)
Cloth sample hammer 395 ± 2g
Furniture decorations specimen hammer 594 ± 2g
Pilling test:
Gripper assembly 155 ± 1g, heavy punch 260 ± 1g
Effective diameter of abrading table:
φ121mm
Effective friction diameter:
A) Wear resistance test: φ28.8mm
B).Pilling performance test: φ 90 mm
Display :
LED Display
Dimensions (L * W* H):
880*600*420mm
Power supply:
AC380V,180W
Accessories:
ballot sheet 1pcs, bowl shape specimen kit 1pcs,O-rings( 4,6,8), Abrasion weights kit(4,6,8), Pilling weights kit(4,6,8), power line 1pcs
Optional purchase consumables:
wool fabric, felt, sponge, EMPA, scale, SM50 scales

Standards

 EN ISO 12945-2,

ISO 12947-1/2/3/4,ISO 20344,

ASTM D4966,ASTM D4970,

BS EN 388,BS EN 530,BS 3424,BS 5690,

JIS L1096,

DIN 53863,DIN 53865,

SATRA TM31,IS 12673,

IWSTM 112,IWSTM 196,IWTO 40-88,SFS 4328,NEXT 16,GMW 15651,

ISO 5470-2,

M&S 17,M&S 19,M&S 19C,NEXT 18,NEXT 18a,NEXT 18b,
