Tohnichi Torque Gauge 2400ATG-S-High Precision
Tohnichi Torque Gauge 2400ATG-S
Tohnichi Torque Gauge 2400ATG-S is measured manually, comparing the deformation of the measured object, the torque of the screw, and so on.
Now it is also widely used in the camera industry, mainly to measure the torque of the camera lens when zooming.
Technical Specifications
Model | Without Memory Pointers | 45ATG | ||||||
With Memory Pointers | _ | 90ATG-S | 150ATG-S | 300ATG-S | 600ATG-S | 1200ATG-S | 2400ATG-S | |
Torque Range[gf • cm] | MIN.~MAX. | 5~45 | 10~90 | 20~150 | 30~300 | 60~600 | 100~1200 | 300~2400 |
Division Value | 1 | 2 | 2 | 5 | 10 | 20 | 50 | |
Dimension[mm] | Dimension[mm] | L’ | 89 | |||||
Diameter | D | 43.5 | ||||||
Chuck Grip | Φd | 1~6.5 | ||||||
Scale Dia. | D1 | 35 | ||||||
Body | L1 | 51 | ||||||
Weight[kg] | 0.18 | |||||||
Accuracy | ±2% |
Features
1. Two-way operation lightweight torque gauge.
2. The tip is a three-jawed chuck.
3. The “push-lock button” makes it easy to secure the chuck.
4. The dial is equipped with a stop at 270 degrees to prevent overload.
5. High precision, strict quality.

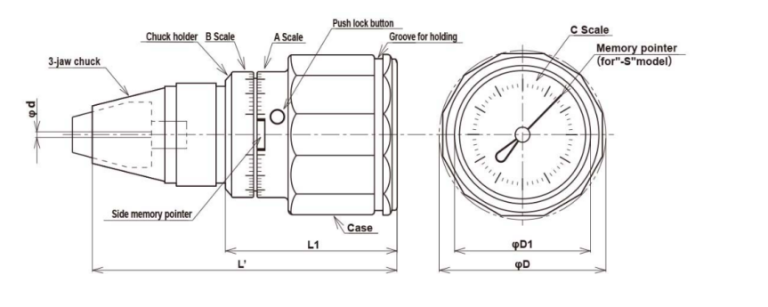

Dimensions
Notes
1. When measuring with the ATG/BTG (-S), be sure to clamp at least 10mm of the object to be measured inside the chuck.
2. Models 45ATG, ATG06Z and ATG045CN are only available without side and top memory pointers.
