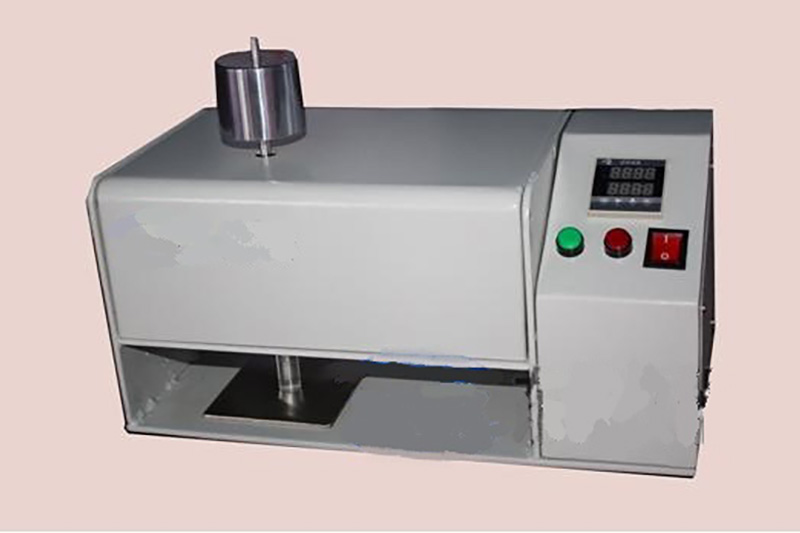

AATCC 116 Rotary Vertical Manual Crockmeter HTC-003

AATCC 116 Colorfastness To Crocking Rotary Vertical Manual 02 AATCC 116 Colorfastness To Crocking Rotary Vertical Manual 02
AATCC 116 Colorfastness To Crocking Rotary Vertical Manual 01 AATCC 116 Colorfastness To Crocking Rotary Vertical Manual 01
It is applicable to textiles made from all fibers in the form of yarn or fabric, whether dyed, printed or otherwise colored and especially to prints where the singling out of areas amaller than possible to test with the standard AATCC Crockmeter (AATCC Method 8) is required.



Standard : AATCC 116

Purpose of equipment

AATCC 116 Rotary Crockmeter is used to determine the colour fastness of textiles to dry or wet rubbing particularly for printer fabrics.Applies 1134 grams of pressure on a 16mm finger and rotate 1.125 turns clockwise then anti-clockwise.

The operating handle is however turned in one direction only.

Technical specifications

Crocking finger diameter: 16mm±0.1

Dimension: 260*154*156mm(L*W*H)

Weight: 5.6 kg

Accessories

Sandpaper 2 pcs, clamping ring 2 pcs, weight 1pcs

Rotary Crockmeter Optional purchase consumables: Pre-cut Crocking Cloths, Grey Scales

Standards

AATCC 116
