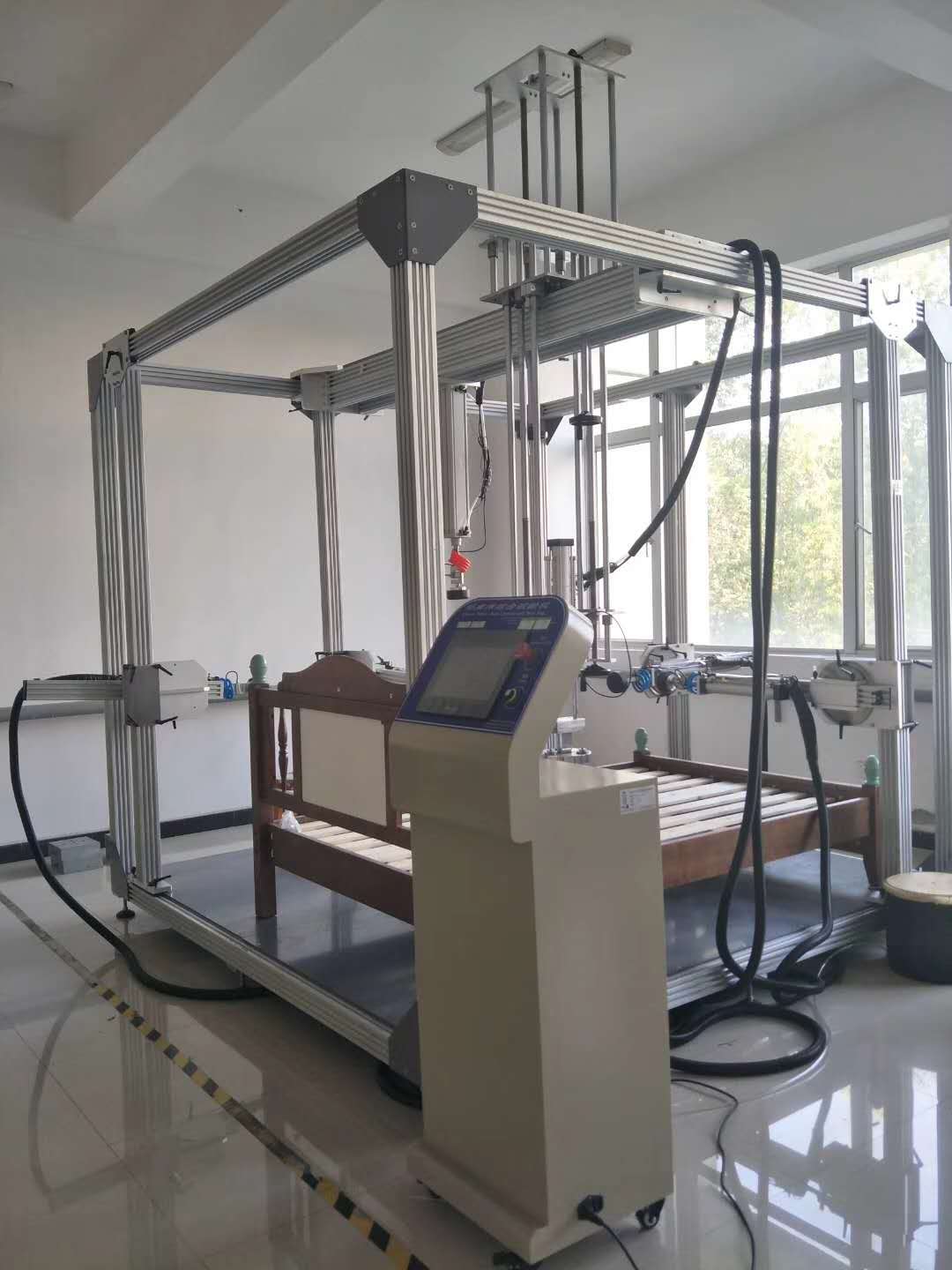

Bed Comprehensive Tester TNJ 001B

Bed comprehensive tester simulates the strength or bearing capacity of the bunk bed under the condition of one-time or repeated load under normal use and habitual misuse.

Youtube video : Click here

Bed Comprehensive Tester TNJ 001B is suitable for the structural strength and durability of bed furniture.

After a certain number of tests, check whether there is any damage in the structure and function of the sample, so as to understand the performance and defects of the product.

Technical Specifications

Electric

Parameter

Name

Function

Brand

Specification

PLC

Programmable Controllers

Siemens



4AD module/4DA module

Digital-to-analog conversion input/output

Siemens



Control System

Execute automatic control program

HUST TONY



Force sensor

Real-time force detection

Hua Lanhai

High-precision force sensor, real-time acquisition of force value signal

computer

Monitoring and parameter setting

Lenovo



Loading Cylinder

provide load capacity

AirTAC



Cylinder Magnetic Switch

Provide limit protection

AirTAC



Proportional Valve

Control cylinder output pressure

SMC



Silencer

Eliminates the noise of cylinder exhaust

SMC



Encoder Displacement



Accuracy ±0.5mm

Counter



0~999999 times (can be set)









Product

Parameter

Instrument size (length * width * height) mm

2500*2500*2000mm(Can be customized according to customer requirements or product size)

Measurable sample size / minimum and maximum

Long:300mm—1950mm

Width:300mm—1950mm

High:100mm—1200mm

Can be customized for you

Power Supply

AC 220V 10A 50Hz

Gas Source

6kgf/cm^2 or above stable air source

Instrument Weight

About:1200kg

Package

Wooden case

Shipping Requirements

Due to its large size, this device needs to be disassembled for transportation and needs to be reassembled at the place of use

Standard

Configuration

 TNJ-J09 4.5 impactor,

1 Set

TNJ-J07 2 Loading pads

1 Set

 Wire

 1 Pcs

Inner hexagon tools

1 Set

Operating manual

1 Pcs

Main Electrical Components

Name

Function

Brand

Remark

PLC

programmable control unit(PCU)

mitsubishi



4AD Module

Digital analog quantity conversion input

mitsubishi



4D Aodule

Digital analog volume conversion output

mitsubishi



Two-Channel Control System

Execute automatic control program

HUST TONY



Force Value Sensor

Real-time force detection

Hua Lanhai



 Touch Screen

Monitoring and parameter setting

Weilun



Cylinder

Provide load force

AirTAC



Cylinder magnetic Switch

Provide limit protection

AirTAC



Proportional Valve

Control cylinder output pressure

SMC



Silencer

Eliminates the noise of cylinder exhaust

SMC



Switching Power Supply

Provide control circuit voltage

MEAN WELL



Breaker

Power-off protection in case of short circuit

Chint


furniture impact test equipment

Features

1. High-resolution digital controller; closed-loop control. The output end of the cylinder is equipped with a fatigue-grade tension and pressure sensor, and the air pressure control of the cylinder is controlled by an imported SMC gas-electric proportional valve, and the output force of the cylinder can be controlled through the touch screen input; to achieve high-precision testing.

2. With real-time force-time curve display.

3. The frame structure design is adopted, and the frame is made of customized thickened aluminum profiles, which is beautiful and generous. All cylinder groups are moved by sliding, which can be operated by one person without any tool assistance. The frame adjustment part adopts pulley structure and guide rail plus bearing design, which can easily and conveniently adjust the loading position to adapt to different specifications of samples and improve work efficiency.

4. The fixed block at the bottom and the portable magnet can adjust the position at will to adapt to samples of different specifications.

5. The loading pad is detachable, which can be easily replaced with different loading pads to meet different test requirements

6. Various test items can be realized by moving the combined cylinder combination unit. All channels can be set to independent or joint action mode, and all channels are set with independent setting boxes.

7. The PLC controller is used to control the movement of the instrument, and the operation is intuitive and simple. The force value adjustment uses a precision SMC proportional valve to adjust the air pressure to change the loading force value.

8. Equipped with a high-precision force sensor to sense the force value instantly, each loading group is individually adjusted and controlled, and the loading force value is stable and reliable.

9. After a sudden power failure or artificial shutdown, turn on the power again or restart it, and continue to run according to the parameters set before the power failure, so as to ensure the continuity and stability of the test and avoid loss of test data.

10. The interface is easy to operate and easy to use.

11. The instrument has cylinder stroke limit protection function and sensor force value protection function. Cylinder stroke limit protection function.

12. The electric lifting device is used to carry out different angle load tests on samples of various heights

13. Bed Comprehensive Tester is controlled by computer, mobile phone control, Internet control, and real-time video monitoring

14. The operating software comes with a test standard program that meets the requirements, and can be upgraded remotely; the test process can be monitored by no one, and the fault can be automatically alarmed, and the fault can be removed remotely; the remote operation interface of the mobile phone can view the surveillance camera and the safe environment of the laboratory site

15. Multifunctional interface control software, which can control and monitor multiple devices.

16.The control software needs to save the test data of the instrument to the database, which can permanently save and query the historical test data.

17. The laboratory management system can be connected to the computer database on the equipment to facilitate the management of laboratory equipment and data query and filing.

18.When no one is in the laboratory, you can enter the device operating system to operate the device through the computer website, QR code, mobile APP, WeChat.

19. If the same operating system is compatible and incorporated into one site to operate the device.

Standards

1. Vertical impact test (BS EN 1725:1998,Clause 7.4)

2. Durability test on bed base (BS EN 1725:1998,Clause 7.4& BS EN 747-2:2012+A1 :2015 ,clause 5.4.5)

3.Vertical static load (BS EN 1725: 1998 , Clause 7.6)

4. Durability of treads (BS EN 747-2:2012+A1:2015, Clause 5.6.3)

5. Durability test on frame and fastening ( BS EN 747-2: 2012+A1 : 2015, Clause 5.5 )

6. Static load test of safety barriers ( BS EN 747-2: 2012+ A1: 2015,clause 5.4.2 )

7. Vertical static load on treads (BS EN 747-2:2012 + A1 :2015, clause 5.6.1 )

8. Horizontal static load on treads (BS EN 747-2:2012+ A1: 2015, clause 5.6.2 )
