Furniture Testing Machine – Vertical Load Impact Test TNJ-019

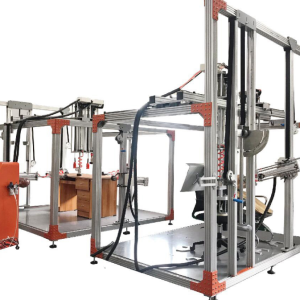

Furniture impact Test Furniture impact Test

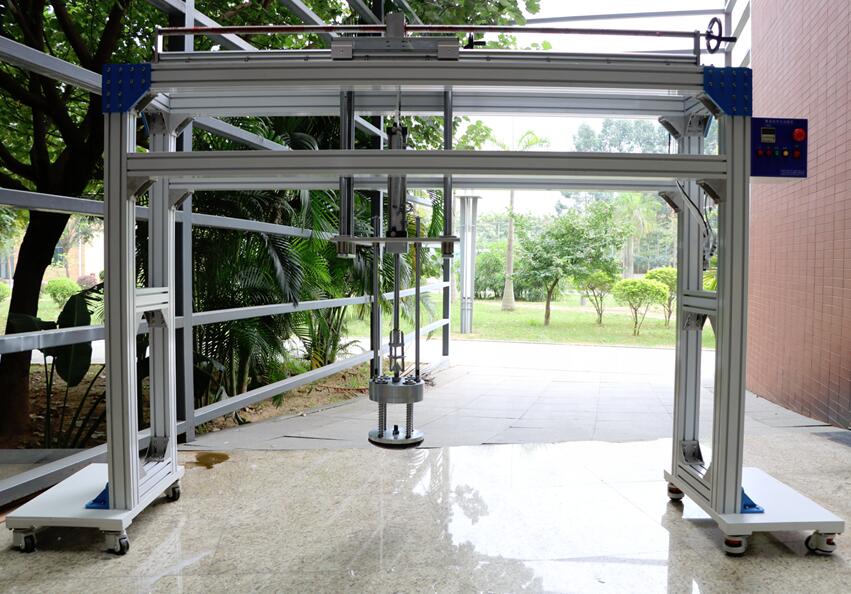

Vertical impact test Vertical impact test
QQ截图20161107142210 QQ截图20161107142210
1728 impact test head 1728 impact test head

Furniture Testing Machine – Vertical Load Impact Test TNJ-019 for durability on chair seat, table, and bed based on BS EN.

Standard :

  • Seat impact test (BS EN 1728:2012,Clause 6.24)
  • Vertical impact test (BS EN 1730:2012, clause 6.6)
  • Impact test on bed base  (BS EN 747-2:2012+ A1: 2015, clause 5.4.4 )
  • Vertical impact test (BS EN 1725: 1998 , Clause 7.4)

Youtube video : Click here

Technical specifications

a.Vertical post and cross bar

-To hold cylinder/impactor

b.Pneumatic cylinder

-To hold, release and raise the impactor

-Height: Adjustable height up to 300mm (adjustable)

c.Impactor consists of (refer attachment):

-Circular body –200 mm in diameter,

separated from the striking surface by helical compression springs

and free to move relative to it on a line perpendicular to the plane of the central area of the striking

surface. The body and associated parts minus the springs shall have a mass of (17±0.1) kg and the whole

apparatus including mass, springs and

striking surface shall have a mass of (25±0.1) kg.

-Spring – the nominal spring rate of the combined spring system is (7±2) N/mm and the total friction

resistance of the moving parts is less than 1 N. The spring system shall be compressed to an initial force of (1040±5) N(measured statistically) and the amount of spring compression point to the point where the

springs become fully closed shall be not less than 60 mm.

-Striking surface- shall be a rigid circular object, 200 mm in diameter, the face of which has a convex

spherical curvature of 300 mm radius with a 12 mm front edge radius

d.On/Off switch, machine can be operated manually

Feature

Furniture Testing Machine – Vertical Load Impact Test TNJ-019

1.European standard aluminum profile
(Thickness and strength 5 times higher than industry)
2. U.S.-origin high-precision force sensors
3. Ades a cylinder
4. Portable magnet retainer
5. Customize the 1 to 1 load block to standard

Standards

  1. Seat impact test (BS EN 1728:2012,Clause 6.24)
  2. Vertical impact test (BS EN 1730:2012, clause 6.6)
  3. Impact test on bed base  (BS EN 747-2:2012+ A1: 2015, clause 5.4.4 )
  4. Vertical impact test (BS EN 1725: 1998 , Clause 7.4)
