Caster and Base Durability Testing Machine TNJ-004-Manufacturer-HUST TONY

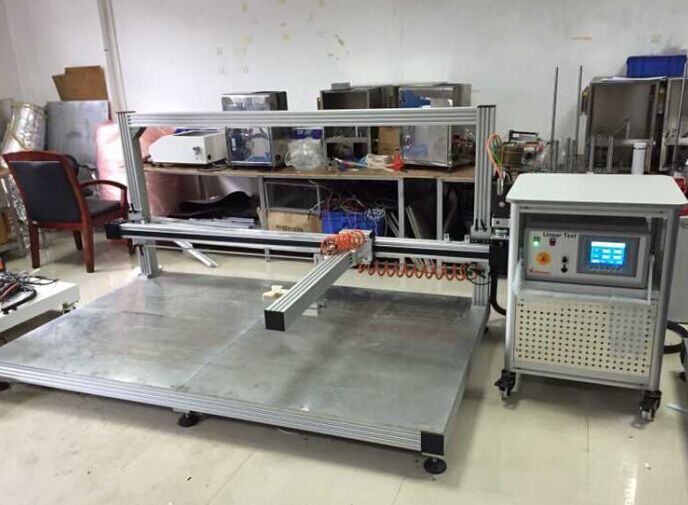

Caster and Base Durability Testing Machine
Standard :BIFMAX5.1-2017 ect.
Purpose of Equipment
Caster and Base Durability Testing Machine is suitable for testing the base seat chair with caster,to determine the ability of caster or base resistance to fatigue and abrasion caused by moving forward or backward.Place the caster specimens on the tester platform,and loading 102kg to make the specimen in repeat travel at a certain speed,the travel distance should be at least 762mm..After certain times,check the caster function is normal.This machine is required to place on a horizontal and stable platform when install.Caster and Base Durability Testing Machine needs to connect with 7kgf/cm^2 or above clean gas supply.
Technical Specifications
Model | TNJ-004 |
Test Bed Size | 85cmx160cm |
Test Speed | 10±2times/min |
Test Stroke | ≥762mm |
Load | 113kg±1g |
Blocks | thickness 3.2mm,width 51mm, edge blend 3 pcs |
Counting | 0~999999 adjustable |
Control Mode | PLC+TEXT screen control |
Size(WxDxH): Test machine | 270cmx85cmx129cm |
Size(WxDxH):control box | 36x32x100cm |
Weight(Kg) | ≈500Kg |
Air Supply | 7kgf/cm^2 and above stable gas source |
Power | 1∮ AC 220V 3A |
Features
1. European standard aluminum Frame. (Thickness and strength 5 times higher than industry)
2. Direct factory manufacturer with competitive price.
3. Strict quality, with high-quality, professional, after-sales service team.
4. One year free warranty service.
5.The Obstacle block can be disassembled freely, which is convenient to switch the test mode.
6.The test table is provided with a safety guard fence to prevent harm in the process of testing.
7.Weight could be add up to seat load, which is easy to operate.
Standards
ANSI/BIFMA X5.1-2011 Section 17
QB/T 2280-2007 Section 6.6.7
EN 1728-2012 Section 6.29 method 2, 7.13 method 2
EN1335-3 -2009 Section 7.3.5 method 2
