Drawer Durability Strength Testing Machine TNJ-005A

Drawer Slides Durability Strength Cycle Tester Drawer Slides Durability Strength Cycle Tester
BIFMA X5.1 Drawer Slides Mechanical Durability Strength Cycle Tester BIFMA X5.1 Drawer Slides Mechanical Durability Strength Cycle Tester
TNJ- 005A Drawer Slides Durability Strength Cycle Tester TNJ- 005A Drawer Slides Durability Strength Cycle Tester
pull-out and close of the drawer tester pull-out and close of the drawer tester

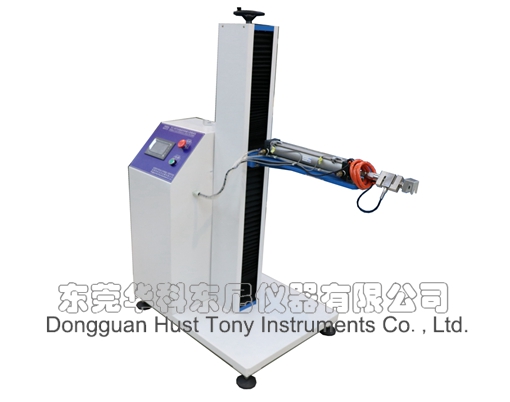

Drawer Durability Strength Testing Machine is Designed to test drawers, desks, cabinets and wardrobe.

Drawer Durability Tester is used to test the durability of the drawer slides of furniture.

Apply a certain load inside the drawer, repeated pull-out and close of the drawer.



Standard : BSEN 1728 : 2012 , ANSI/BIFMA X5.1-2017 Durability Test

Youtube video : Click here

Technical specifications

Maximum stroke400mm
Speed0.25m/s
Test heightMax.108cm
Count:0 ~ 999999 can be set
Control modeText controller + PLC control
Dimension(W x D x H)80x60x120cm
Weight (about)≈80Kg
Power supplyAC 220V 50Hz 3A
Gas source≥ 6kgf / cm2 stable gas so

Technical specifications

Drawer Durability Strength Testing Machine is used for opening and closing drawer and must to fulfill minimum needed as follow:

  1. Compressed air – 6 kg/cm²
  2. AC motor –to control the height from 250-1000mm
  3. Pneumatic cylinder – double acting cylinder with magnetic switch and maximum stroke 600 mm (adjustable). The cylinder shall have the fixture to hold any type of drawer handle to open / close the drawer without exerting force on the drawer system
  4. Power supply: 240 Volts: 13 Amps: 50 Hz
  5. ON/OFF switch button
  6. 6- digits Electronic Predetermine Counter (EPC)
  7. The EPC will register every stroke of the cylinder up to six (6) digits,Will stop the test operation to the preset stroke.
  8. The EPC will display the number of stroke achieved during the test, EPC also able to store the number of cycles when the power interruption take place and able to display the actual reading and continues counting when operation resumes
  9. The signal shall maintain until the counter is reset.

Note: one stroke is counted as one cycle

Standards

BSEN 1728 : 2012 , ANSI/BIFMA X5.1-2017 Durability Test
