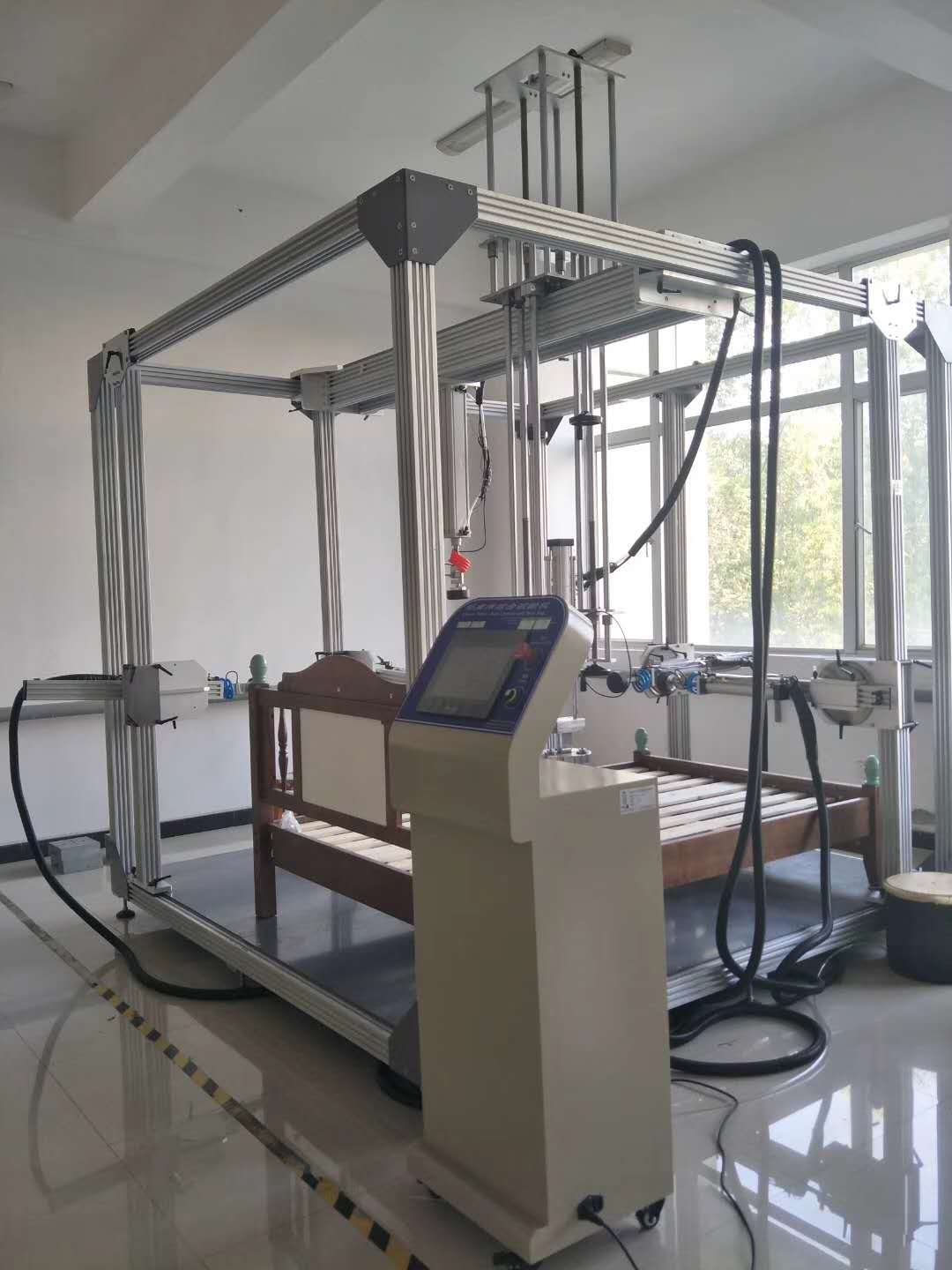

TNJ-002 Strength Durability Tester for table Desk and Bed (1)

TNJ-002 Strength Durability Tester for table Desk and Bed (3)

BSEN1730 Table desk testing machine for furniture mechanics

TNJ-002 Strength Durability Tester for table Desk and Bed (4)

Strength Durability Furniture Test Equipment For Table and Bed – TNJ 002

Strength Durability Furniture Test Equipment

simply utilize a ball screw linear actuator to apply loads and position with a high level of accuracy. The actuator is mounted to a unique system of linear bearings which allow vertical, horizontal, and diagonal motion.

Test items for tables:

BS EN 1730: 2012 Domestic Furniture – Tables Test Methods for Determination of Strength Durability and Stability

Standard :

BS EN12521 ; BS EN 1730: 2012 ;

(Other test standards can be made according to customer requirements)

Youtube video :Click here

Technical specifications

Electrical parameter	Name	Function	Brand	Detailed parameters
	PLC	Programmable controller	Siemens
	4ADmodule /4DAmodule	Digital analog conversion input/output	Siemens
	Control system	Perform automatic control procedures	HUST TONY
	Force sensor	Real-time detection of force values	Hualan Sea	High-precision force sensor that collects force signals in real time
	Computer	Monitoring and parameter setting	association
	Load the cylinder	Provides load force	AirTAC	Bore * stroke 50mm400mm（5PCS）80mm400mm（1PCS）
	Cylinder magnetic switch	Provides limit protection	AirTAC
	Proportional valves	Control the cylinder output pressure	SMC
	muffler	Eliminates the noise of the cylinder exhaust	SMC
	Encoder displacement			Accuracy± 0.5mm
	counter			0~999999 times can be set
Product parameter	Instrument size（Long * wide * high）mm	249024902000mm（It can be customized according to customer requirements or product size）
	Measurable sample size / minimum, max	Measurable dimensions of the table, durability test (Measurable Dimensions): Longest：1900mm highest：1800mm ; Widest：1900mm Minimum length and width:500mmx500mm Minimum height:400mm Can be customized according to customer requirements Table Impact Test (Measurable Dimensions): Longest：1900mm ; Widest：1900mm Highest：1800mm ; Minimum height:1200mm Minimum length and width:500mmx500mm Can be customized according to customer requirements Cabinet test (measureable size): Highest：2000mm ; Longest：2000mm Widest：1800mm Can be customized according to customer requirements
	source	AC 220V 10A 50Hz
	air supply	6kgf/cm^2or above stable air source
	weight	about：1200kg
	package	wooden case
	Transportation requirements	Due to its large size, this device needs to be disassembled and transported and reassembled at the point of use
Max Capacity	Maximum vertical horizontal: 3000N The maximum force level : 1000N
Loading cylinders	Four horizontal and One Vertical
Loading force value (Max) on the theory	1500Nþ Force value induction: high-precision power sensor
Applied standards:	BS EN 1730: 2012 6.2 Horizontal Static Load Test 6.4 Horizontal durability and stiffness test 6.4.3 Stiffness of the structure 6.6 Stiffness of the structure ISO 7170-2021 6.4 Strength of the structure 6.4.1 Test for structure, underframe and/or legs (Other test standards can be made according to customer requirements)
Control way	PLC control
Air source	Air supply input is 0.4Mpa-0.8Mpa. (6kgf/cm^2 or above, supplied by customer themselves）

Our furniture instrument competitive features

1.High-resolution digital controller; closed-loop control. The output end of the cylinder is equipped with a fatigue-grade tension and pressure sensor, and the air pressure control of the cylinder is controlled by an imported SMC gas-electric proportional valve, which can input and control the output force of the cylinder through the computer host interface; realize high-precision testing.
2.With real-time force-time curve display.
3.The frame structure design is adopted, and the frame is made of custom-made thickened aluminum profiles. Europe standard aluminum profile(Thickness and strength 5 times higher than industry).The structure is stable and beautiful. All cylinder groups are moved by sliding, which can be operated by one person without any tool assistance. The frame adjustment part adopts pulley structure and guide rail plus bearing design, which can easily and conveniently adjust the loading position to adapt to different specifications of samples and improve work efficiency.
4.The fixed block at the bottom and the portable magnet can adjust the position at will to adapt tosamples of different specifications
5.The loading pad is detachable, which can be easily replaced with different loading pads to meet different test requirements
6.Can test multiple samples at the same time, more efficient and energy-saving to complete the testrequirements .Various test items can be realized by moving the combined cylinder combination unit. All channels can be set to independent or joint action mode, and all channels are set with independent setting boxes.
7.The PLC controller is used to control the movement of the instrument, and the operation is intuitive and simple. The force value adjustment uses a precision SMC proportional valve to adjust the airpressure to change the loading force value.
8.Equipped with a high-precision force sensor to sense the force value instantly, each loading group is individually adjusted and controlled, and the loading force value is stable and reliable.
9.After a sudden power failure or artificial shutdown, turn on the power again or restart it, and continue to run according to the parameters set before the power failure, so as to ensure the continuity and stability of the test and avoid loss of test data.
10.The interface is easy to operate and easy to use.
11.Our equipment is controlled by computer, mobile phone control, Internet control, and real-time video monitoring
12.The operating software comes with a test standard program that meets the requirements, and can be upgraded remotely; the test process can be monitored by no one, and the fault can be automatically alarmed, and the fault can be removed remotely; the remote operation interface of the mobile phone can view the surveillance camera and the safe environment of the laboratory site
13.Multifunctional interface control software, which can control and monitor multiple devices.
14.The control software needs to save the test data of the instrument to the database, which can permanently save and query the historical test data.
