1000L IP5/6X Dust Test Chamber Meet IEC60529 -WT 14

IEC60529 IP5/6X Dust Test Chamber IEC60529 IP5/6X Dust Test Chamber
IEC60529 IP5/6X Dust Test Chamber IEC60529 IP5/6X Dust Test Chamber
IEC60529 IP5/6X Dust Test Chamber IEC60529 IP5/6X Dust Test Chamber

test the physical and other related properties of the products under the simulated dust climate conditions, such as electronic and electrical products, lamps, cabinets, electrical components, automobiles, motorcycles and their parts.

Standard:

IEC60529:1989 +A1:1999 +A2:2013

GB/T4208-2017 : 13.4, 13.5 and picture 3

GB7000.1 : 9.2.1,9.2.2 and picture 6.

Features

  1. Suitable for product IP5X and IP6X dusttesting.
  2. The inner box and turntable are all made of SUS304 stainless steel plate.
  3. The housing is made from Chinese high-quality steel plate.
  4. Special silicone seal ring, good elasticity, good durability.
  5. The bottom of the device has replaceable dust components that make it easy to replace used dust.
  6. Built in vibratory device ,it can be operated automatically alternately to prevent dust from sticking to the wall of the box and condensation.
  7. The observation window is made of tempered glass and built a LED lights for easy observation of internal testing.
  8. There is a pumping tube in the box, the sample can be vacuumed (samples need to be reserved for breathing holes).
  9. 7 inch touch screen and Panasonic PLC , The system controls the dust blower, dust vibration and test time.
  10. Heating system: The circulating dudesis built in a heater to avoid dust condensation.
  11. Vacuum system: Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump.

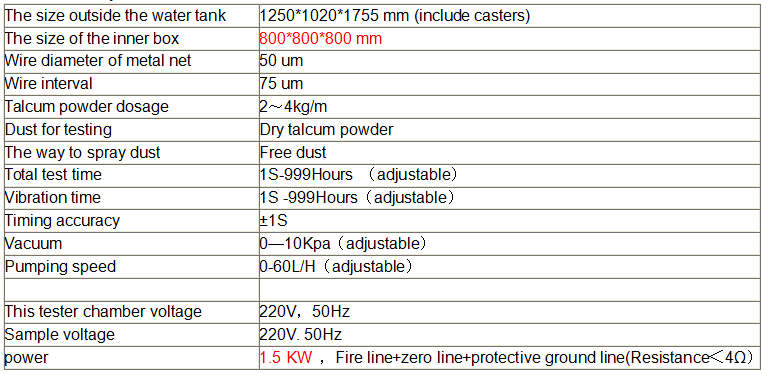

Technical specifications

WT 13

Accessories:

            Dry talcum powder 1 bag (approx. 2KG)

Terms of use :

WT 1301

Standards

IEC60529:1989 +A1:1999 +A2:2013

GB/T4208-2017 : 13.4, 13.5 and picture 3

GB7000.1 : 9.2.1,9.2.2 and picture 6.
