IPX8 Pressure Immersion Water Test Chamber WT-10

IPX8 Pressure Immersion Water Test Chamber.Simulate the damage of natural water (rain, seawater, river water, etc.) to products and materials, and waterproof testing of product casings.



Standard:

IEC60529:1989 +A1:1999 +A2:2013
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.8
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.9

Application

IPX8 Pressure Immersion Water Test Chamber has been widely used in domestic commodity inspection bureau and the domestic and foreign products, quality authentication laboratory and the domestic and foreign well-known electronics manufacturers. Equipment performance had achieved the international advanced level, cost-effective.

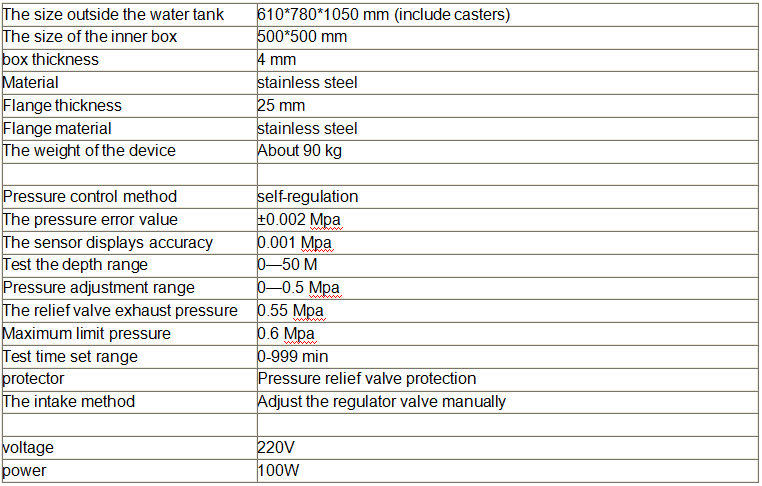

Technical Specifications

Model

WT-10

The Size Outside the Water Tank

610*780*1050mm (include casters)

The Size of The Inner Box

500mm*500mm

Box Thickness

4mm

Material

Stainless steel

Flange Thickness

25 mm

Flange Material

Stainless steel

The Weight of The Device

About 90 kg

Pressure Control Method

Self – regulation

The Pressure Error Value

+0.002 Mpa

The Sensor Displays Accuracy

0.001 Mpa

Test The Depth Range

0-50M

Pressure Adjustment Range

0-0.5 Mpa

The Relief Valve Exhaust Pressure

0.55 Mpa

Maximum Limit Pressure

0.6 Mpa

Test Time Set Range

0-999 min

Protector

Pressure relief valve protection and Leak switch protection

The Intake Method

Adjust the regulator valve manually

Voltage

220V 50Hz,100W

Standard Accessories

1 Pcs

Safety valve certificate

1 Pcs

Auxiliary steel rod

1 Pcs

Intake pipe

1 Pcs

5 Meters pipe

Features

1. Suitable for product IPX8 waterproof testing.

2. Chamber max allowable water depth of the box is 1.2 M, the bottom area: 1000 x 1000mm. (Customizable).

3. The immersion tank is made of SUS304 stainless steel.

4. Special silicone seal ring, good elasticity, good durability.

5. Top tank cover on equipment – secured with 8 ring screws (send auxiliary-steel rod).

6. The equipment is equipped with a safety valve that automatically releases pressure after exceeding the rated pressure, preventing operator errors and hazards.

7. Electronic control components using imported brands (e.g. LS, Panasonic, Omron, etc.).

8. Using the imported Panasonic pressure sensor – automatic control tank test pressure, control accuracy: ± 0.002 Mpa, sensor display accuracy: 0.001 Mpa.

9. The equipment base is equipped with 4 casters for easy movement and fixation.

10. According to customer requirements, punching in the tank, convenient sample for live testing. (before place the order to explain this requirement)

Terms of Use

WT 10 02

Standards

IEC60529:1989 +A1:1999 +A2:2013

GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.8

GB7000.1 Lamps Part I: General Requirements and Trials 9.2.9
