IPX7 Water Immersion Test Chamber – Waterproof Tester WT 09






IPX7 Water Immersion Test Chamber – Waterproof Tester .Simulate the damage of natural water (rain, seawater, river water, etc.) to products and materials, and waterproof testing of product casings.
IEC60529:1989 +A1:1999 +A2:2013
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.7
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.8
Application
IPX7 Water Immersion Test Chamber – Waterproof Tester .Water Immersion Test Machine has been widely used in domestic commodity inspection bureau and the domestic and foreign products, quality authentication laboratory and the domestic and foreign well-known electronics manufacturers. Equipment performance had achieved the international advanced level, cost-effective.
Features
- Suitable for product IPX7waterproof testing
- Chambermax allowable water depth of the box is 1.2 M, the bottom area: 1000 x 1000mm. (Customizable)
3.The immersion tank has a double-layer structure :
Inner layer is made of SUS304 stainless steel+ 40 square tube to do the reinforcement, to keep the inner box will not deform + outer layer is welded with hair-printed stainless steel plate.
- In and out of the waterway pipes under the installation water tank
- The observation window material is 12mm tempered glass, which can observe the test condition of the sample.
6.The stainless steel base frame is equipped with heavy casters and a cup of feet ,easy movement and fixation.
7.The stainless steel ruler can shows the water level precisely.
8.There is a stainless steel hook on top of the inner box for easy hanging test samples.

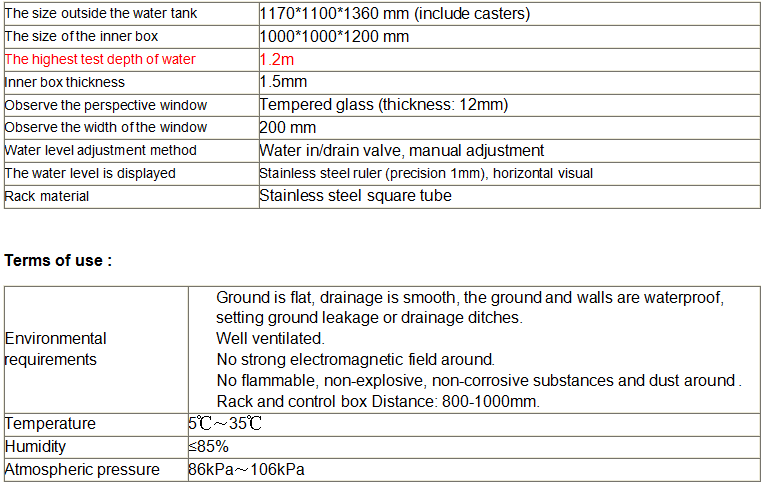

Technical specifications

Accessories:
- water tube : 3 meter *2 pcs
Standards
IEC60529:1989 +A1:1999 +A2:2013
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.7
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.8
