Strong Jet Water Test Chamber -Up And Down Swing Spray -WT 08

IPX5 IPX6 Strong Jet Water Test Chamber IPX5 IPX6 Strong Jet Water Test Chamber
IPX5 IPX6 Strong Jet Water Test Chamber IPX5 IPX6 Strong Jet Water Test Chamber

Strong Jet Water Test Chamber -Up And Down Swing Spray.Simulate the damage of natural water (rain, seawater, river water, etc.) to products and materials, and waterproof testing of product casings.

Standard:

IEC60529:1989 +A1:1999 +A2:2013
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.5, 14.2.6

GB7000.1 Lamps Part I: General Requirements and Trials 9.2.6, 9.2.7.

Application

Strong Jet Water Test Chamber -Up And Down Swing Spray

The chambers built with the water tightness of sealed components such as head lamp, Power connector. Waterproof power connector in the test room can easily supply electricity to the specimens.

IPX5 and IPX6 functions on one test chamber,make testing convenient and cost-effective.

Features

  1. Suitable for product IPX5, IPX6 waterproof testing
  2. The shell is made from domestic high-quality steel plate.
  3. Equipment with water tank, can recycle water, no need to build a professional waterproof test room.
  4. The use of high-quality servo motor, low noise, swing speed, angle more accurate..
  5. The operator is not required to carry out the test with a spray gun, justfixeda sample can be tested.
  6. The turntable electrical part is fully sealed, effectively preventing water inlet and leakage .
  7. sample turntable: US304 stainless steel plate processing and manufacturing.
  8. The power-off time of the sample power supply can be controlled by the program: power failure (0-999 min) – power on (0-999min) – power failure (0-999min), suitable for samples in the test need to power off.
  9. LED waterproof lighting is installed in the test chamber to facilitate the observation of the test sample.
  10. WT-007 is a fixed-point spray, and WT-008 is a up-and-down swing spray

  11. Nozzle: According to IEC60529

Nozzle IPX5 IPX6

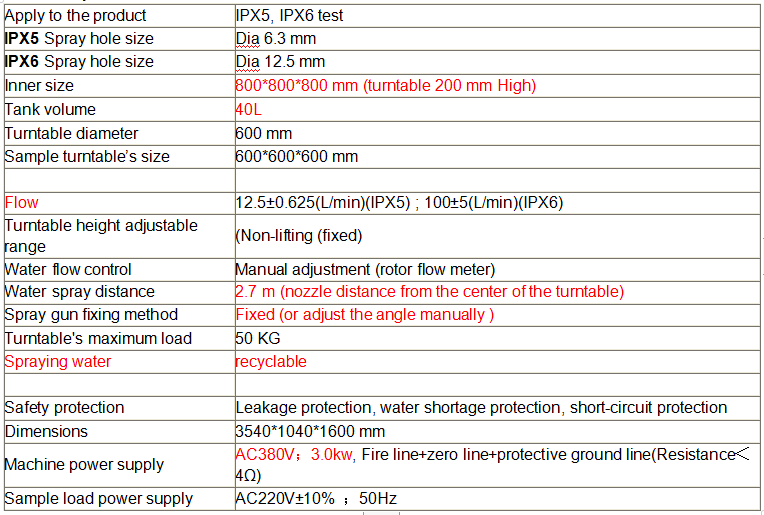

Technical specifications

WT 07

Accessories:

  1. Waterproof socket (IP66)1pcs;
  2. water tube : 5 meter *1 pcs

Terms of use

WT 04

Standards

IEC60529:1989 +A1:1999 +A2:2013
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.5, 14.2.6

GB7000.1 Lamps Part I: General Requirements and Trials 9.2.6, 9.2.7.
