JIS Electronic Rubbing Fastness Tester HTC-004A-Six Loads-Supplier-HUST TONY

JIS Color Fastness Rubbing Friction Testing Machine JIS Color Fastness Rubbing Friction Testing Machine
JIS crockmeter 1 e1622433204372 JIS crockmeter 1 e1622433204372
JIS Colorfastness Rubbing Tester JIS Colorfastness Rubbing Tester
Textile Testing Equipment Color Fastness Textile Testing Equipment Color Fastness

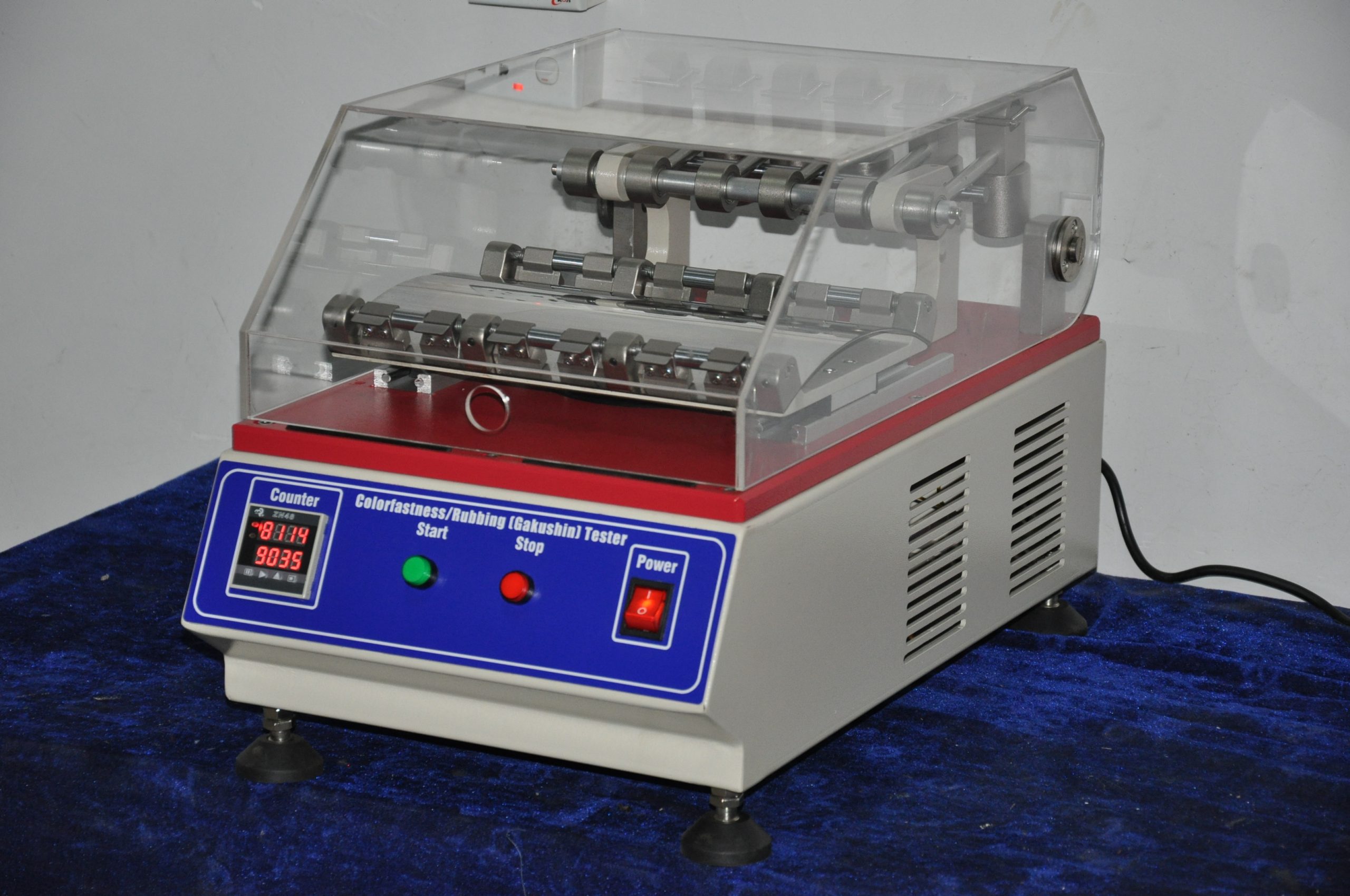

JIS Electronic Rubbing Fastness Tester

JIS Electronic Rubbing Fastness Tester.Use the friction test machine according to prescribed methods, make the sample and tested cotton lawn rubbing fabric to rub each other.

Compare the stained cotton fabric and the grey scales of staining degree to judge the color fastness.

Technical Specifications

Model

HTC-004A

Test Station

6

Test Stroke

120mm

Test Speed

30±2r/min

Rubbing Head Pressure

2N (200g)

Extra Weight

300g

Rubbing Locus Distance

100±1mm

Rubbing Surface

R200 Curved Surface

Rubbing Head

R45mm,surface,approx 20mmX20mm contact area of 100mm2

The distance from the fixed axis center to rubbing finger center

110mm

Cotton Cloth Size

60mmx60mm

Counting Display

LED display,0~99999

Power Supply

1∮ AC 220V 3A, 200W

Machine Dimensions

330×550×400mm(L×W×H)

Net Weight

45Kg

Standard Accessories

Weights

6Pcs

Power line

1Pcs

Optional Purchase Consumables

SDC Cotton Lawn Rubbing Fabric-ISO 105 F10-500 Piece/1 Pack-5cm x 5cm

1 Pack

AATCC Standard Friction Paper-1000 Pieces/1Box

1 Box

AATCC Gray Scale for Color Change TN-C02A

1 Set

AATCC Grey Scale For Staining TN-C02B

1 Set

Structure

20210531102924 25986

Standards

JIS L 0849 II, 0801,0823,,1006,1084,K6328,98136,JIS P-8136
