IMADA Mechanical Force Gauges FS-50k-High Precision

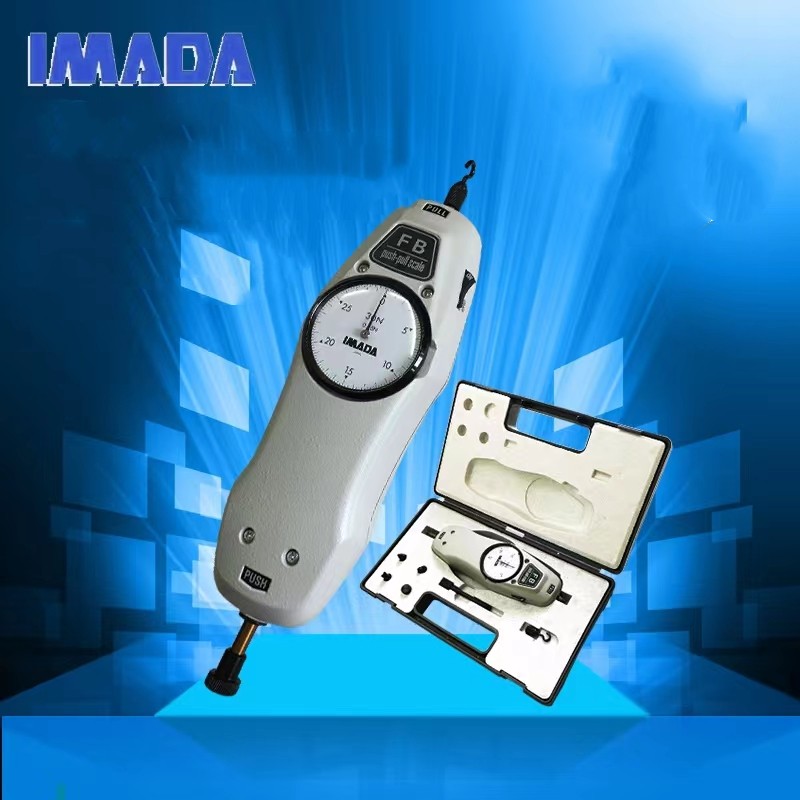

Imada Pointer Push-Pull Force Gauge-FS-50k

Product Introduction

IMADA Mechanical Force Gauges is a small and simple thrust and tensile force testing instrument. It is suitable for push and pull load test in electronic appliances, light industry and textile, hardware, lighter and ignition device, fire fighting equipment, manufacturing, fishing gear, power machinery, scientific research institutions and other industries. It is a new generation of products that replace tubular push-pull force meters.

Technical Specifications

Model	FS-1K	FS-2K	FS-3K	FS-5K	FS-10K	FS-20k	FS-30K	FS-50k
Capacity	1kgf	2kgf	3kgf	5kgf	10kgf	20kgf	30kgf	50kgf
Minimum Read Value	10gf	20gf	25gf	50gf	100gf	200gf	250gf	500gf
Accuracy	士0.3%FS
Stroke	10mm
Net Weight	600g
Measuring Rod	M6
Carry Temperature	-27°C~-+70C
Relative Humidity	15%~-80%RH
Work Environment	No vibrancy and no cautery around
Accessories	Pointer Push-Pull Force Gauge			1 Pcs
	Hard Plastic Packaging Case			1 Box
	Measuring probe			5 Pcs
	3 inch extension rod.			1 Pcs

Features

1.Simple to operate, robust and virtually maintenance-free.

2.Ergonomic design, heavy duty metal case, no batteries required.

3.Can be used in hazardous environments.

4.Dial can be turned

5.Real-time display and peak display modes.

6.All are genuine Japanese products.

Instructions

Please tightly hold gauge by hands or put it on appropriate stands to make a test.When testing,please adjust tested thing and gauge on the same straight line, if they are not.we will not get the correct tested value of load.
