IPX9/9K High Pressure Water Spray Test Chamber WT-12

IPX9/9K High Pressure Water Spray Test Chamber WT-12 is suitable for testing whether electrical products, enclosures and seals can ensure good performance of equipment and components under high temperature and high pressure spray environment.




Standard:

ISO20653-2013、VW80000、GBT4208-2017:14.2.9 and Figure 7, Figure 8, Figure 9, Figure 10, Figure 11, Figure 12 waterproof rating IPX9/9K requirements

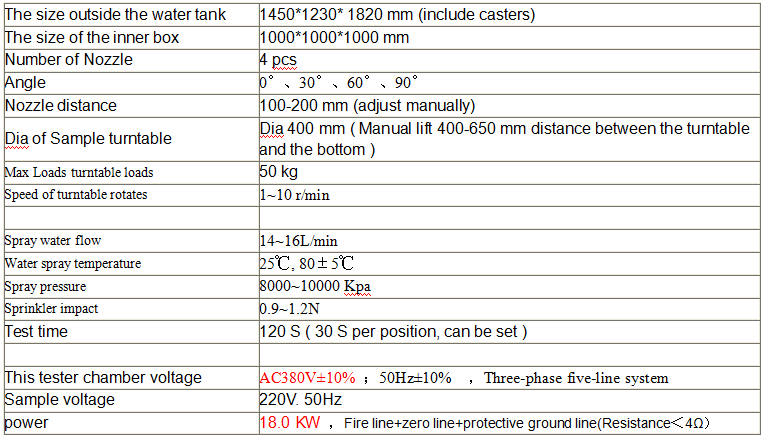

Technical Specifications

Model

TW-12

The Size Outside The Water Tank

1450*1230* 1820 mm (include casters)

The Size of The Inner Box

1000*1000*1000 mm

Number of Nozzle

4 Pcs

Angle

0°、30°、60°、90°

Nozzle Distance

Dia 400 mm ( Manual lift 400-650 mm distance between the turntable and the bottom )

Max Loads Turntable Loads

50 kg

Speed of Turntable Rotates

1-10 r/min

Spray Water Flow

14-16L/min

Water Spray Temperature

25℃,80土5℃

Spray Pressure

8000-10000 Kpa

Sprinkler Impact

0.9~1.2N

Test Time

120 S ( 30 S per position, can be set )

This Tester Chamber Voltage

AC380V+10% ;50H+10% ,Three-phase five line system

Sample Voltage

220V.50Hz

Power

18.0 KW ,Fire line+zero line+protective ground line(Resistance<40)

Standard Accessories

1 pcs

5 meters water pipe

Features

  • Suitable for product IPX9 and 9Kwaterproof testing
  • The inner box and turntable are all made of SUS304 stainless steel plate.
  • The housing is made from Chinese high-quality steel plate.
  • Special silicone seal ring, good elasticity, good durability.
  • Box structure, bring your own water tank, recycle water, tank equipped with level sensor, automatic control of water intake, and built in a low water level alarm detection.
  • Built-in temperature sensor to control the temperature of the water that has been set.
  • The observation window is made of tempered glass and built a LED lights for easy observation of internal testing.
  • Turntable driver: Speed and angle can be set by touch screen (adjustable).
  • Standard custom nozzles for full-size metering, and nozzle holders for adjusting the distance between the nozzle and the sample
  • 7 inch touch screen and Panasonic PLC, electrical accessories such as LS, Omron and other imported brands.
  • 4 fan nozzles are distributed within a vertical 90°and are manufactured according to the IEC60529-2013/GB/T4208-2017 standard.
