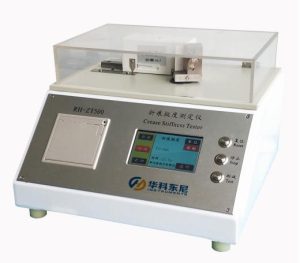

Paper Bending Stiffness Tester

Paper Bending Stiffness Tester  is mainly used for the determination of indentation stiffness (rebound force of 90 º folded) for various cardboard and cartons such as cigarette boxes,It is used to judge the folding performance of various cardboard or cartons.At the same time, it can also be used for the determination of various cardboard bending stiffness.With two-point loading, it is an efficient and easy-to-use instrumentWith two-point loading, it is an efficient and easy-to-use instrument.

Product Features

1. Using high-precision load cells, the accuracy is controlled at <1%, which is better than the ±2% specified in the standard.

2. Double chuck, multi-functional. It measures both paper and cardboard bending stiffness as well as cardboard and carton indentation stiffness. Change the test method, directly enter by the button, fast and convenient.

3.Touch screen Chinese display, friendly man-machine interface operation.Both tests can be completed automatically, with test data statistical processing function, micro printer output, can also be connected to computer operation.When connected to a computer, in addition to automatically memorizing and storing results, you can also display and save the compression curve.

4.The calibration program is specially set up within the instrument to facilitate the calibration of the instrument by the metrology and calibration department (third party).For calibration, the instrument can be calibrated for indication accuracy using standard weights or force measuring devices.

Technical Specifications



Measuring Range

20~10000 mN

Testing Thickness






Bending Time

adjustable according to different material

Bending Angle

adjustable between 1 to 92 º

Bending Length

8 types can be choose (50/40/30/25/20/15/10/5) ±0.1mm

Angular Speed Control

0.5 – 50 °/sec


Thermal Printer

Data Display

7inch Touch Screen Display, Visual menu operation.

Instrument Size





GB/T 2314, GB/T 2236

ISO 5628, ISO 2493
